System Tests: Notes

NOTE: Breakout Box (86-11-006) and Test Cable (86-11-402) must be connected to cruise control module in order to properly test cruise control system. For connector location and terminal identification, see Fig 1 through Fig 5 .

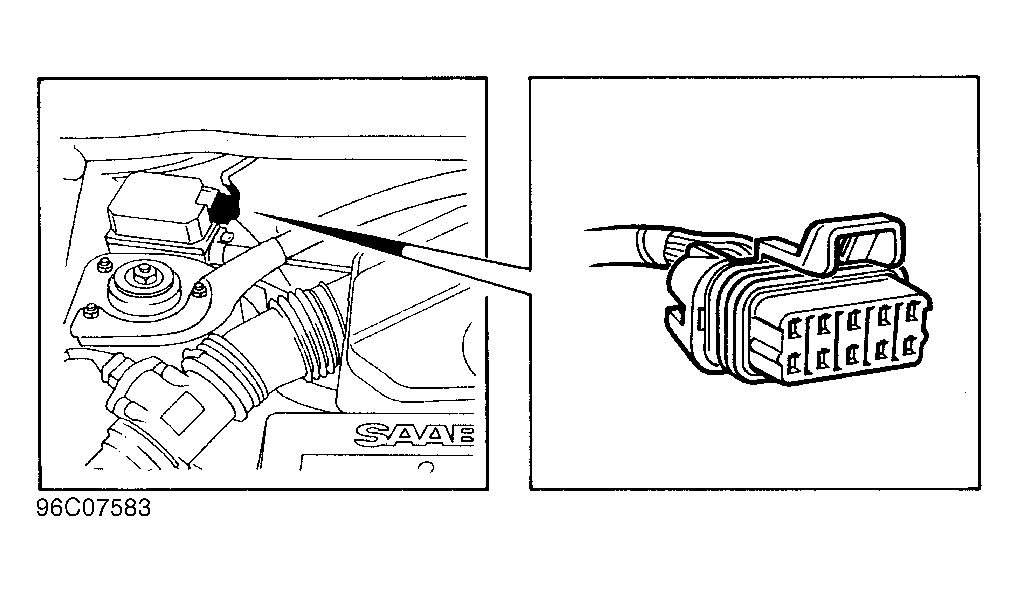

Fig 1: Cruise Control System Connector Location & Terminal Identification: Cruise Control Module
G96C07583Courtesy of SAAB-SCANIA OF AMERICA, INC.

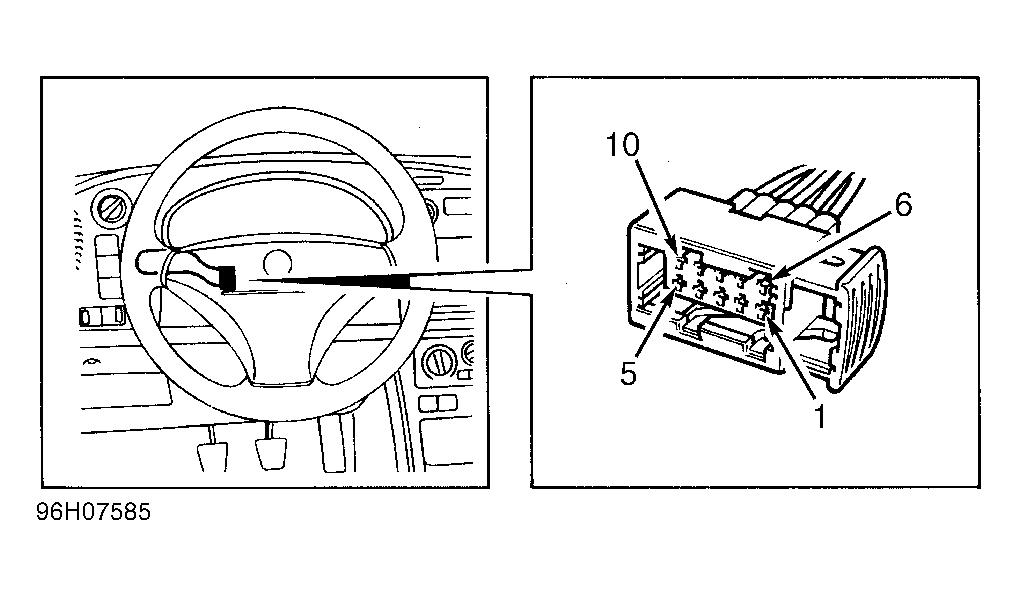

Fig 2: Cruise Control System Connector Location & Terminal Identification: Cruise Control Switch
G96H07585Courtesy of SAAB-SCANIA OF AMERICA, INC.

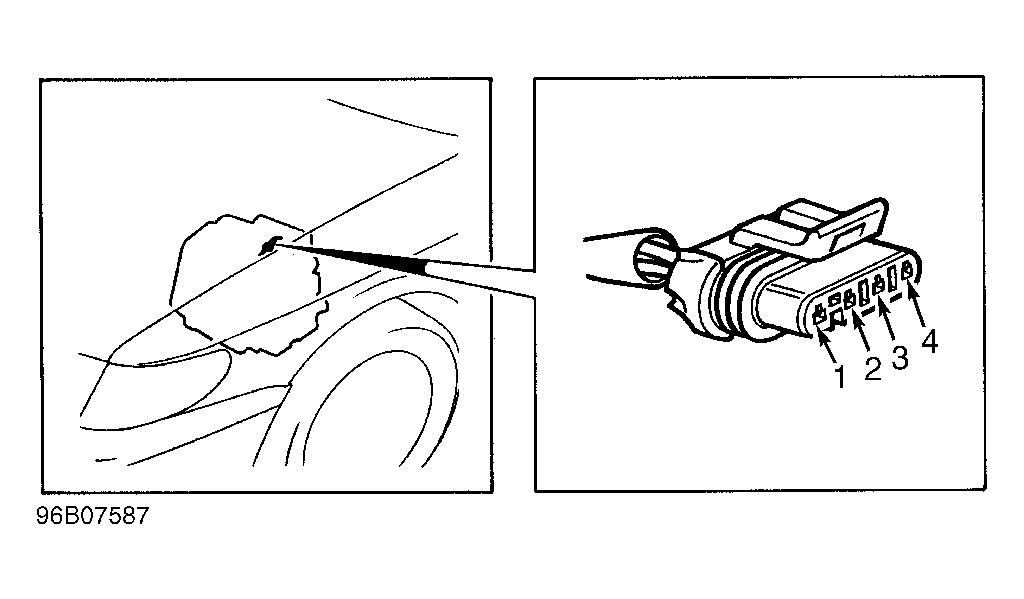

Fig 3: Cruise Control System Connector Location & Terminal Identification: Shift Lever
G96B07587Courtesy of SAAB-SCANIA OF AMERICA, INC.

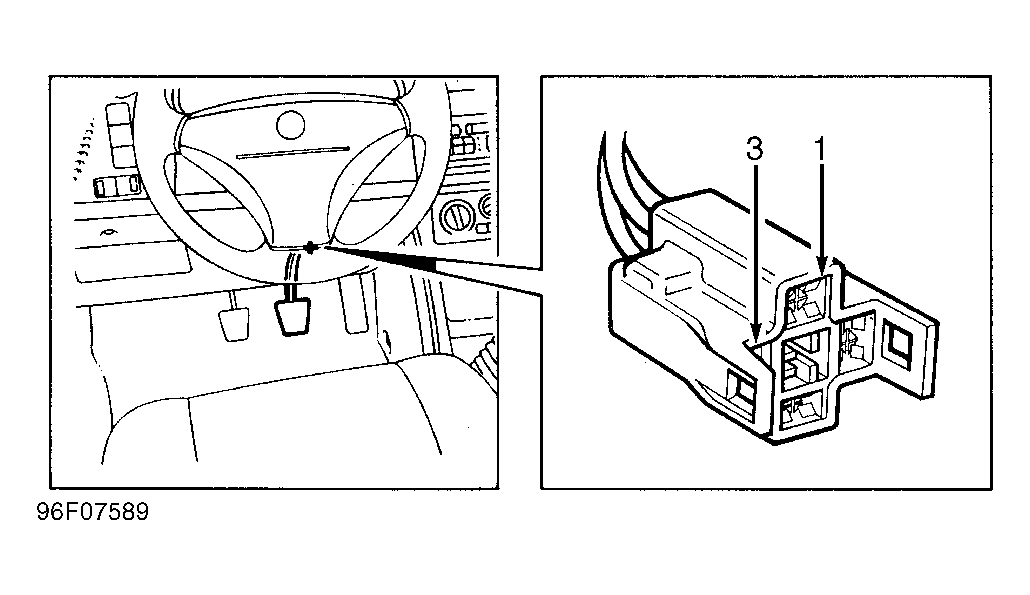

Fig 4: Cruise Control System Connector Location & Terminal Identification: Brakelight Switch
G96F07589Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 5: Cruise Control System Connector Location & Terminal Identification: Brake & Clutch Switch
G96J07591Courtesy of SAAB-SCANIA OF AMERICA, INC.
