Rear Suspension: Description

Rear suspension consists of a rigid axle, coil springs and shock absorbers. The axle is a straight tube with mountings for spring links and hub carriers. See Fig 1 or Fig 2.

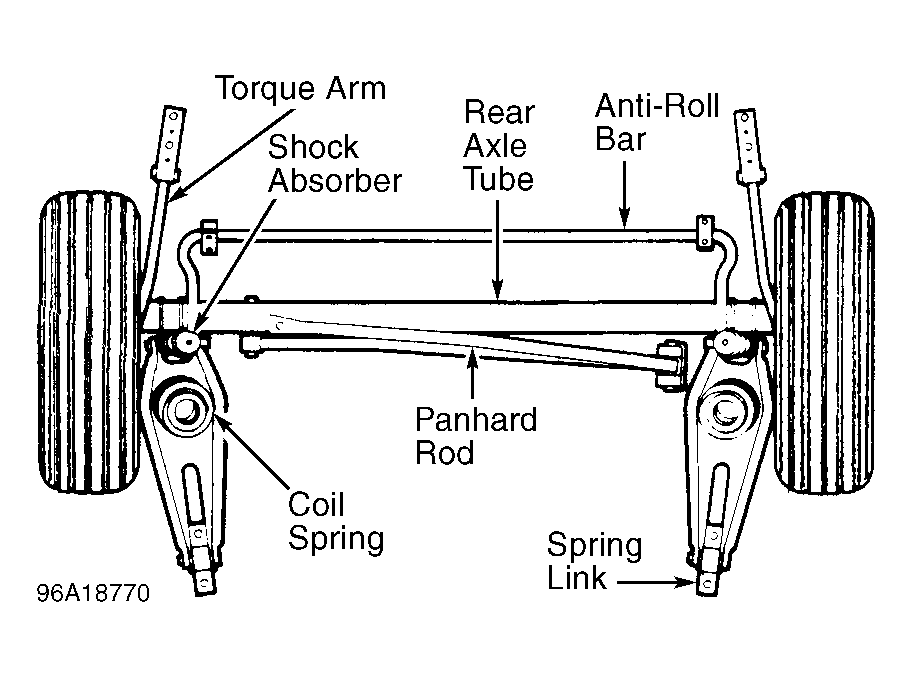

Fig 1: Identifying Rear Suspension Components (900 Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Identifying Rear Suspension Components (9000 Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
