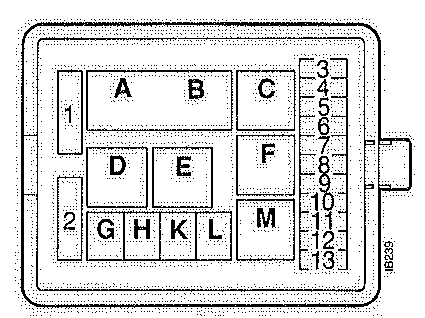

Engine Compartment Fuse Panel Identification
Engine Compartment Fuse Panel Fuses
| Fuse | System | |
|---|---|---|
| 1 | 30A 60A |
Air pump (maxi-fuse) Heat plates, trionic (maxi-fuse) |
| 2 | 30A | Radiator fan, 2 step |
| 3 | 5A | Radiator fan, relay |
| 4 | 40A | Radiator fan, (standard) |
| 5 | 15A | Dipped beam L |
| 6 | 15A | Dipped beam R |
| 7 | 15A | High beam L |
| 8 | 15A | High beam R |
| 9 | 5A | Relay, horn |
| 10 | 25A | Horn |
| 11 | 30A | A/C radiator/compressor |
| 12 | 15A | Extra lamp |
| 13 | 10A | Valve, air pump/vacuum pump |
Engine Compartment Fuse Panel Relays
| Relay | System |
|---|---|
| A-B | Light relay |
| C | Bulb test (pictogram) |
| D | Air pump/heat plates/vacuum pump |
| E | Radiator fan, 2 step |
| F | A/C relay |
| G | Extra light-fog light |
