Abs Fuse Panel Identification

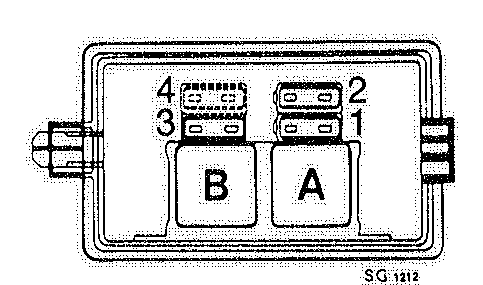

Fig 1: ABS Fuse Panel Identification
G00494830Courtesy of SAAB-SCANIA OF AMERICA INC.
ABS Fuse Panel Fuses

Fuse System
1 30A Pump
2 30A Main relay
3 10A Pump relay and control module
ABS Fuse Panel Relays

Relay System
A Pump relay
B Main relay
