Main Relay

Main relay is tested in the same manner as the fuel pump relay.

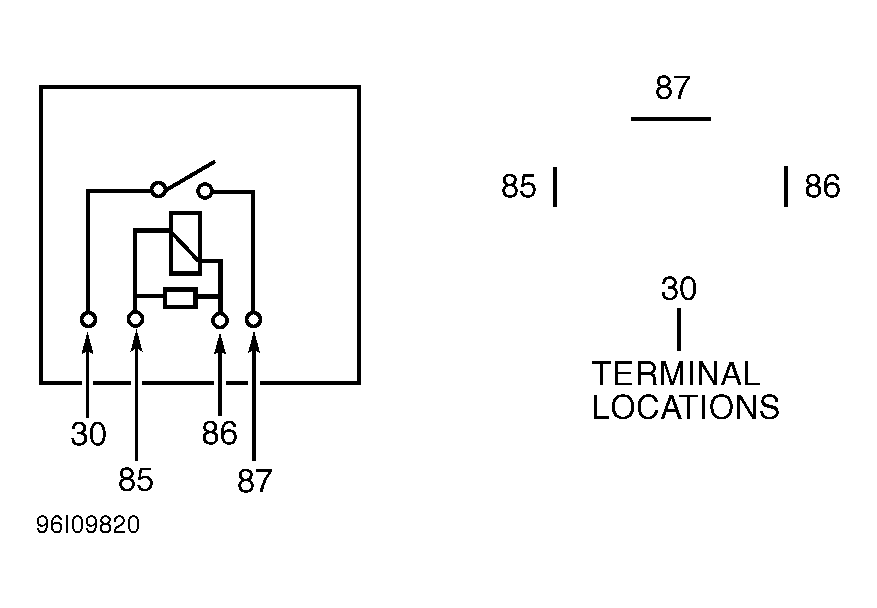

Fig 1: Identifying A/C Clutch, Fuel Pump & Main Relay Circuitry

G96I09820

Courtesy of SAAB-SCANIA OF AMERICA, INC.
