Fan Control Module: Removal

WARNING: This page is about a different car, the 1996 Saab 900 and 1995 Saab 900. However, it is still accessible from the selected car via links, so may be relevant.

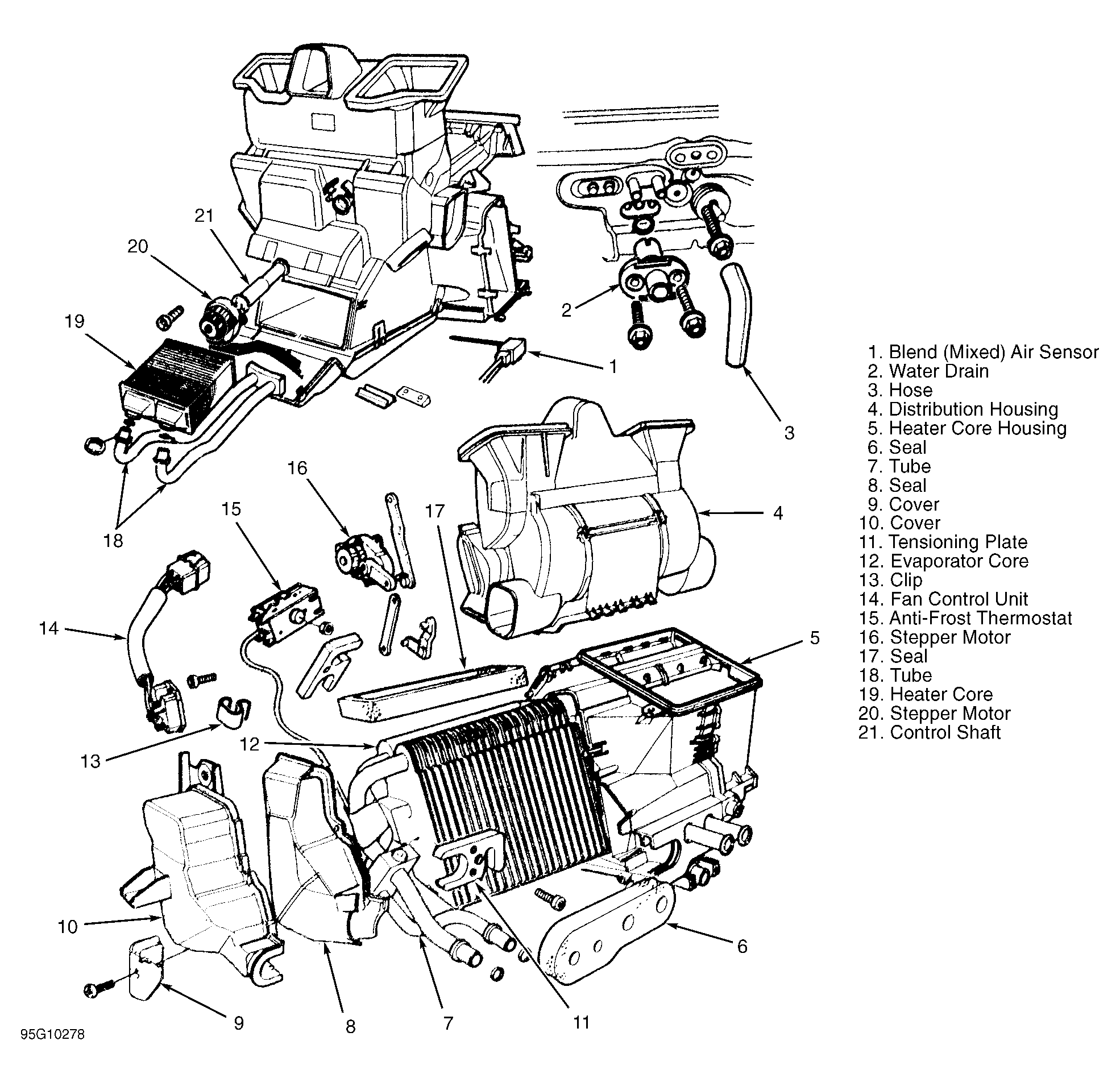

Remove glove box. Remove trim panel from right side of center console. Remove floor air duct. Remove fan control module protective cover. Remove fan control module retaining screws and module. See Figure . Disconnect wiring harness from unit.
