Fault Diagnosis: Programming

WARNING: This page is about a different car, the 1996 Saab 900 and 1995 Saab 900. However, it is still accessible from the selected car via links, so may be relevant.

Manual selections may be saved so that the A/C-heater control panel will always select them when starting vehicle. The ignition switch must be on for at least 4 minutes before settings can be saved.

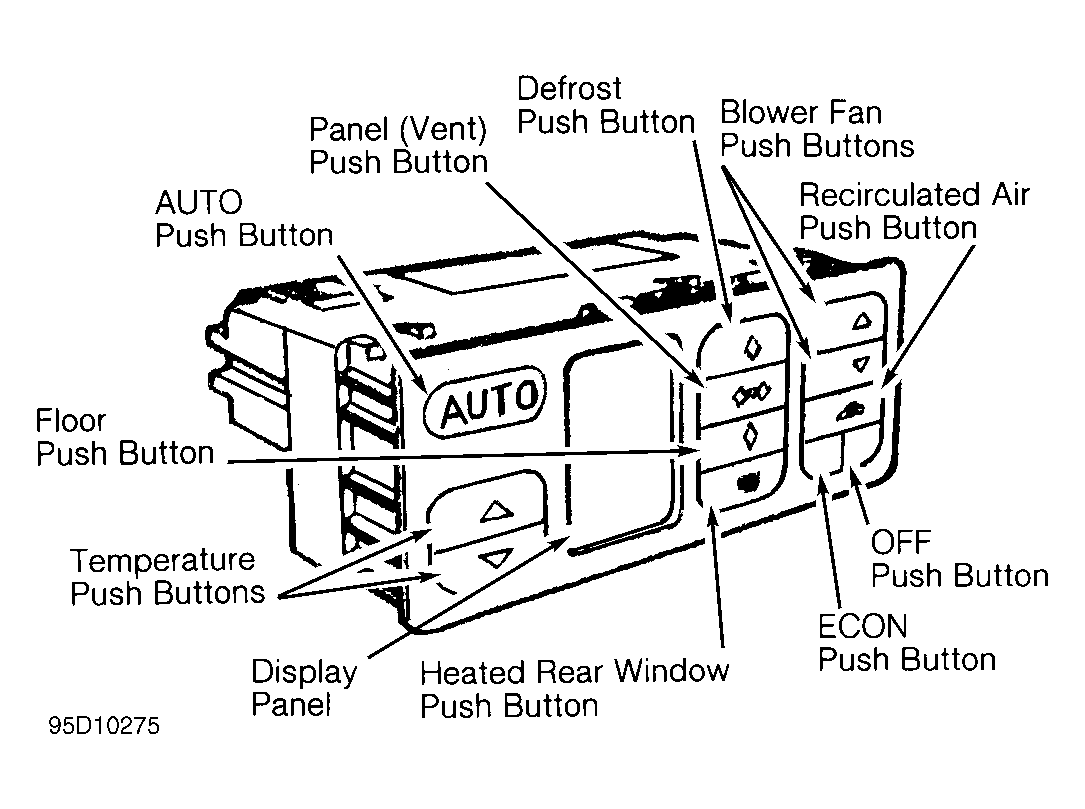

To program A/C-heater control panel settings, make the desired settings. Simultaneously press ECON and blower fan speed increase push button. See Figure . The A/C-heater control panel backlighting will flash to confirm programming.

Saved setting may be deleted by simultaneously pressing and then releasing floor (down arrow) and heated rear window push buttons. See Figure . The A/C-heater control panel will flash to confirm the deletion of setting.
