New System For Command Menus
WARNING: This page is about a different car, the 1998 Saab 900, 1997 Saab 900, 1996 Saab 900, 1995 Saab 900, and 1994 Saab 900. However, it is still accessible from the selected car via links, so may be relevant.

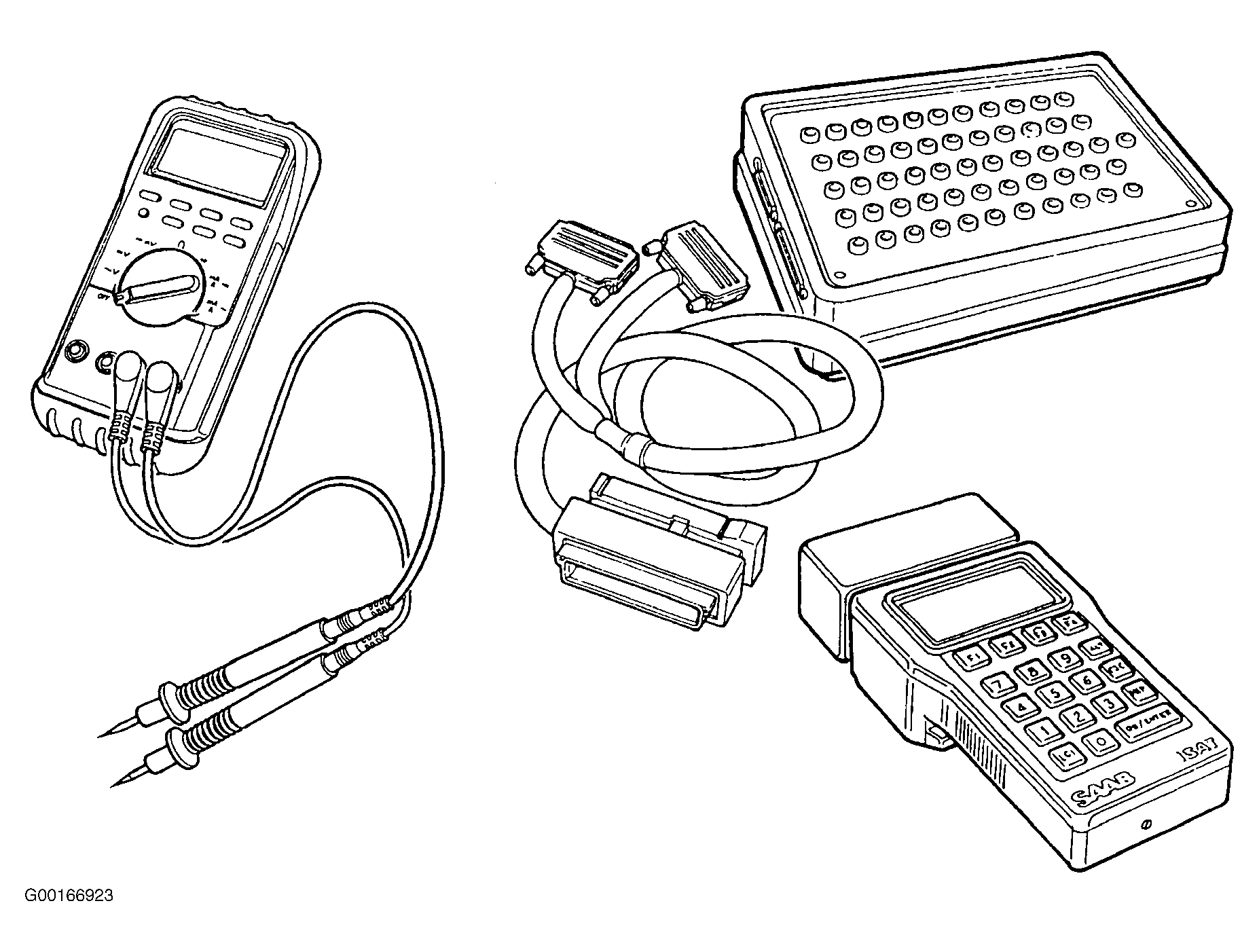

The new EPROM, which has been developed for ISAT for the 1994 model, has an entirely new system of command menus. Previously a 3 figure code was used to read or activate signals and functions. From M94 this has been replaced by a system in which a plain text in a number of menu alternatives makes it simple to select the desired command directly via the keyboard. The structure of the ICE system's command menus is shown in the diagram on the following page. You will see there that there are 10 main menus, of which 6 have sub-menus consisting of a variable number of commands or functions. See Fig 1 .
- READ SWITCHES
- OBTAIN READOUTS
- ACT INSTR FUNCT
- ACTIVATE RELAY
- ACT OTHER FUNCT
- SYSTEM INFORMATION
