Instrument & Display Lighting: Notes
WARNING: This page is about a different car, the 1998 Saab 900, 1997 Saab 900, 1996 Saab 900, 1995 Saab 900, and 1994 Saab 900. However, it is still accessible from the selected car via links, so may be relevant.

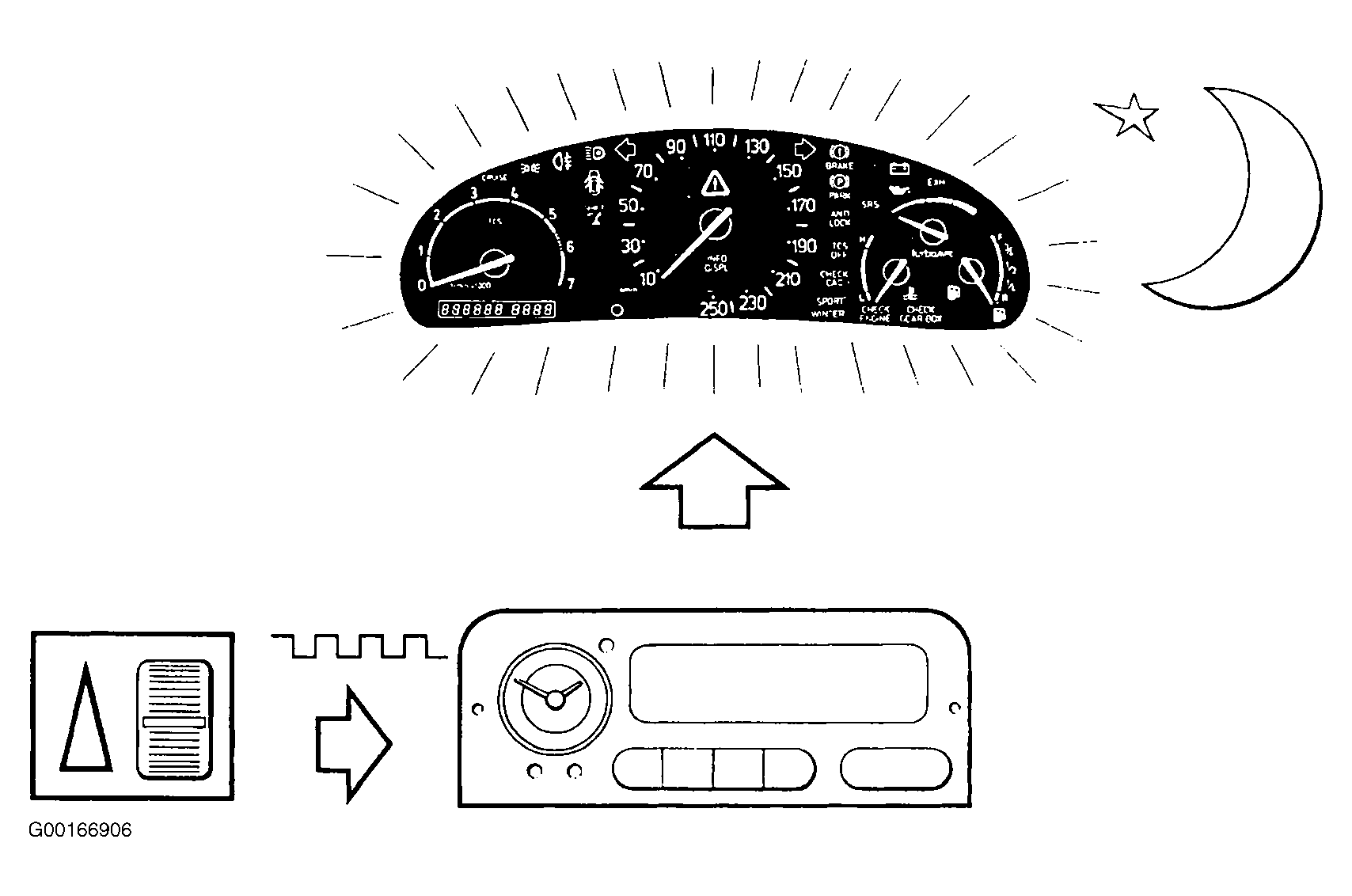

The luminosity of certain lamps in the main instrument is controlled by the Saab Information Display (SID) module on terminals 3 and 4. See Fig 1 .
There are 3 different levels of luminosity:
- Rheostat value.
- Value for luminosity of car's interior.
- Display lighting value.
