WARNING: This page is about a different car, the 1998 Saab 900, 1997 Saab 900, 1996 Saab 900, 1995 Saab 900, and 1994 Saab 900. However, it is still accessible from the selected car via links, so may be relevant.

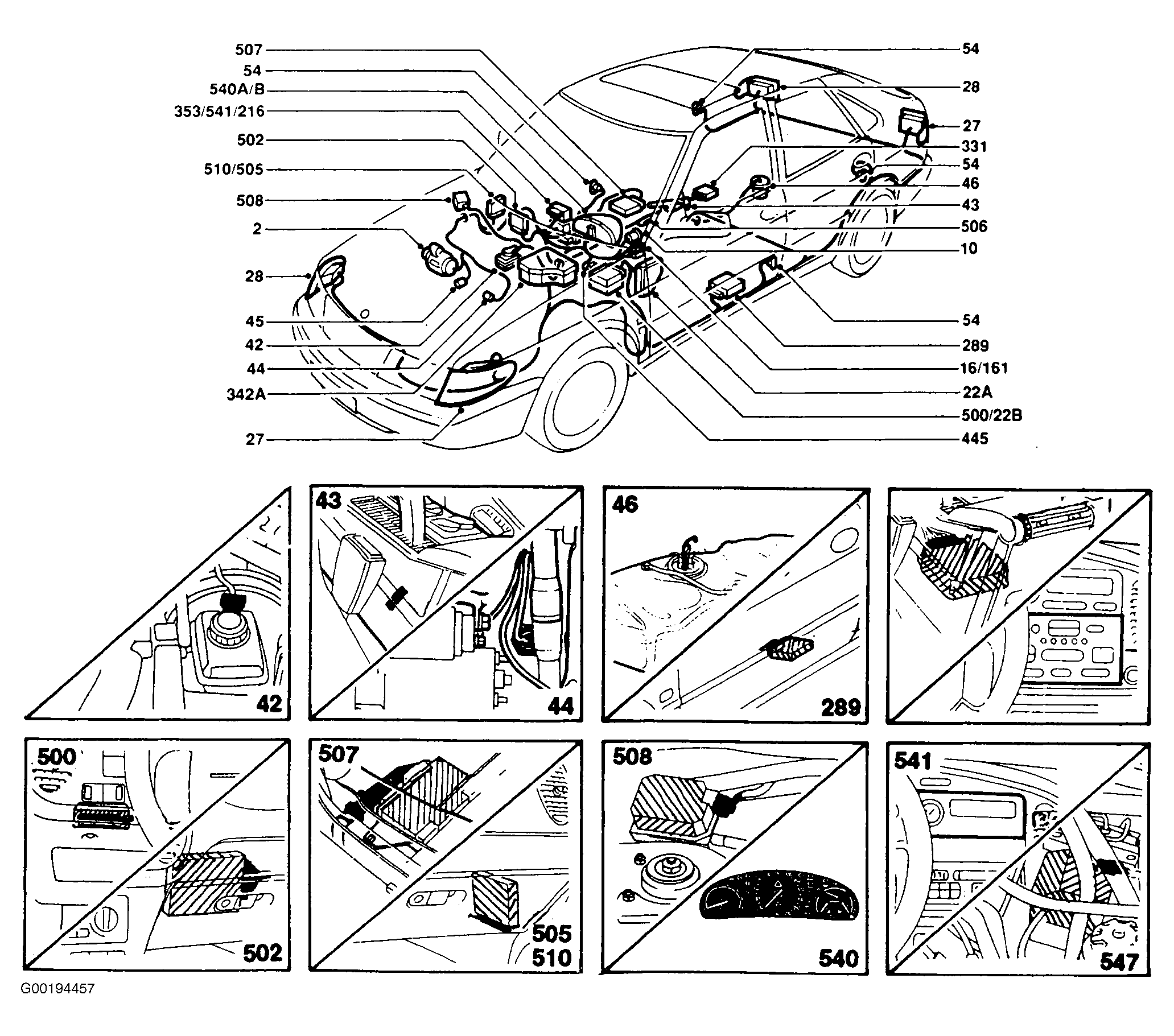

Fig 1: Main Instrument Display Component Locations
Courtesy of SAAB-SCANIA OF AMERICA, INC.

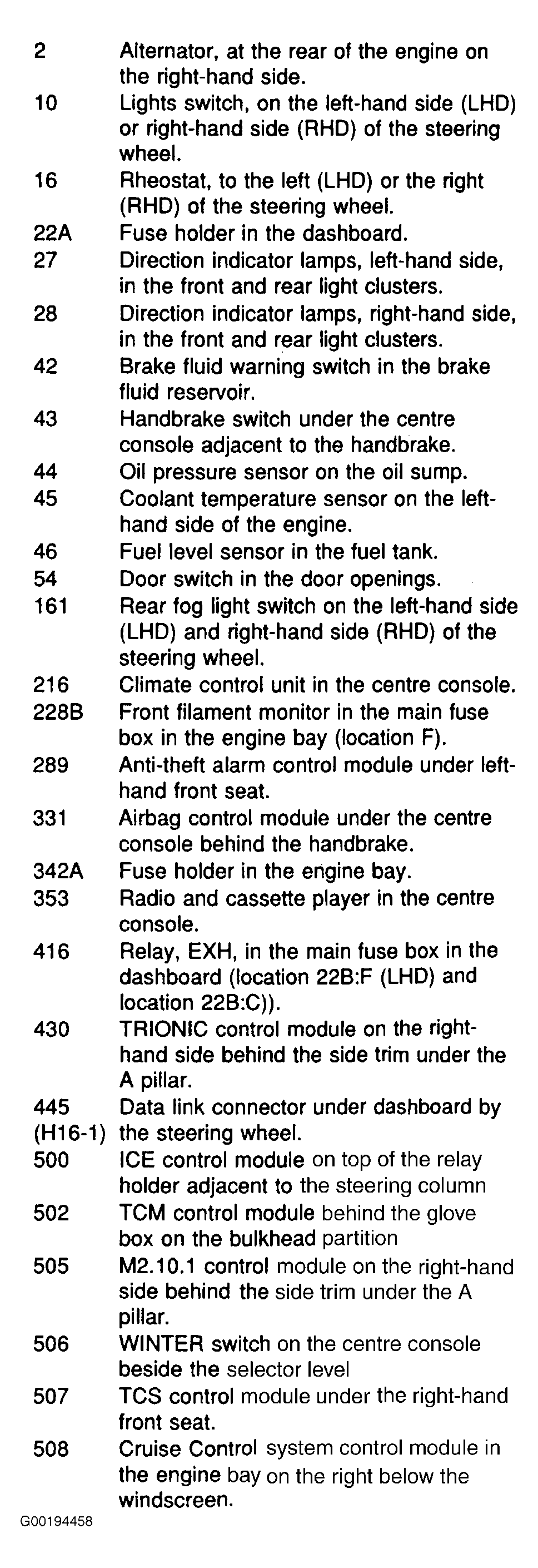

Fig 2: Main Instrument Display Component Location Legend (1 Of 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

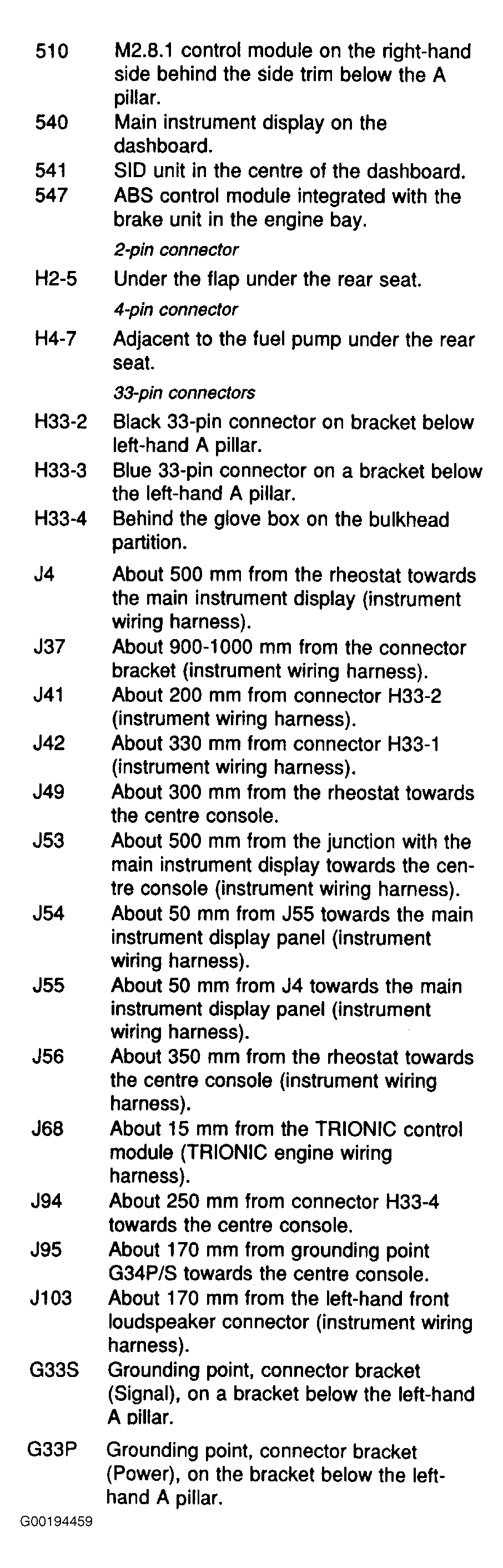

Fig 3: Main Instrument Display Component Location Legend (2 Of 2)
