Repair and Diagnosis: Transmission: Clutches: Description

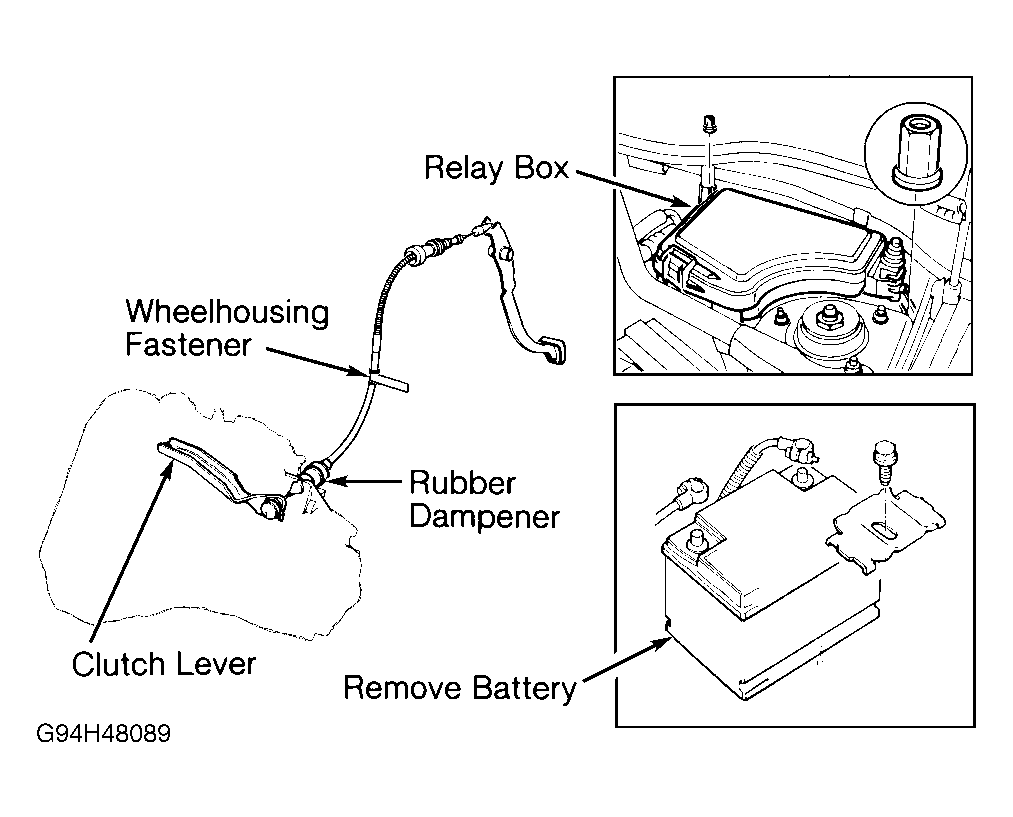

Clutch consists of a clutch disc, pressure plate and throw-out bearing attached to a fork on clutch lever shaft. Clutch fork is attached to lever shaft, and is operated by a cable from clutch pedal. See Figure . Clutch operation is manual and self-adjusting.
