Temperature Gauge

Ensure fuse No. 13 is good and voltage is present at fuse. Check gauge wiring for open or short circuit. See Fig 1 . Check temperature gauge sending unit. If wiring and sending unit are okay, replace gauge.

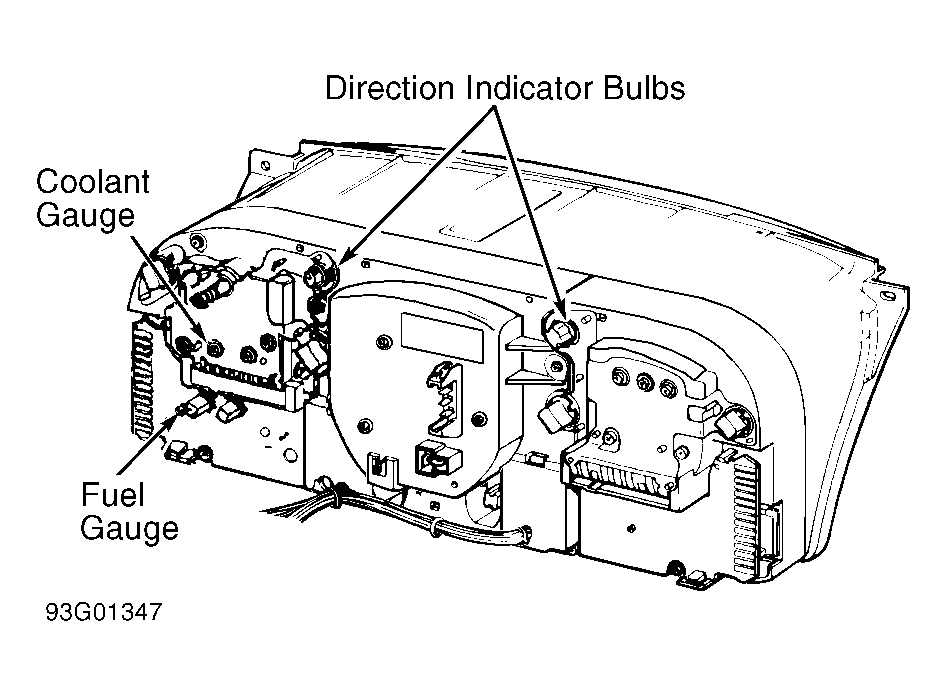

Fig 1: Rear View Of Instrument Cluster (9000 Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
