Servicing - A/T: Identification

Use illustration for transaxle identification. See Fig 1 .

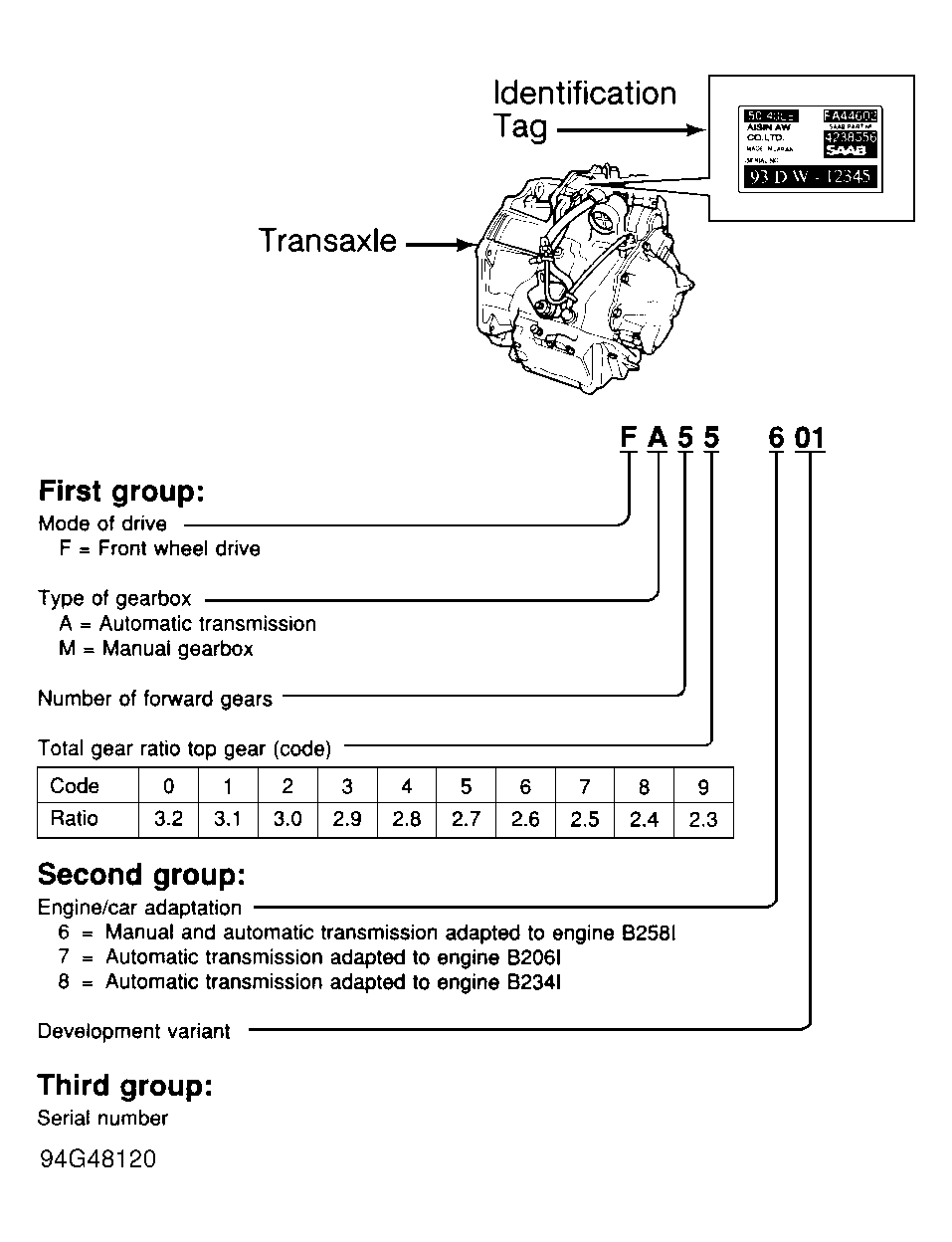

Fig 1: Identifying Transaxle
G94G48120Courtesy of SAAB-SCANIA OF AMERICA, INC.
