UNDERHOOD Maxi-Fuse Panel Identification

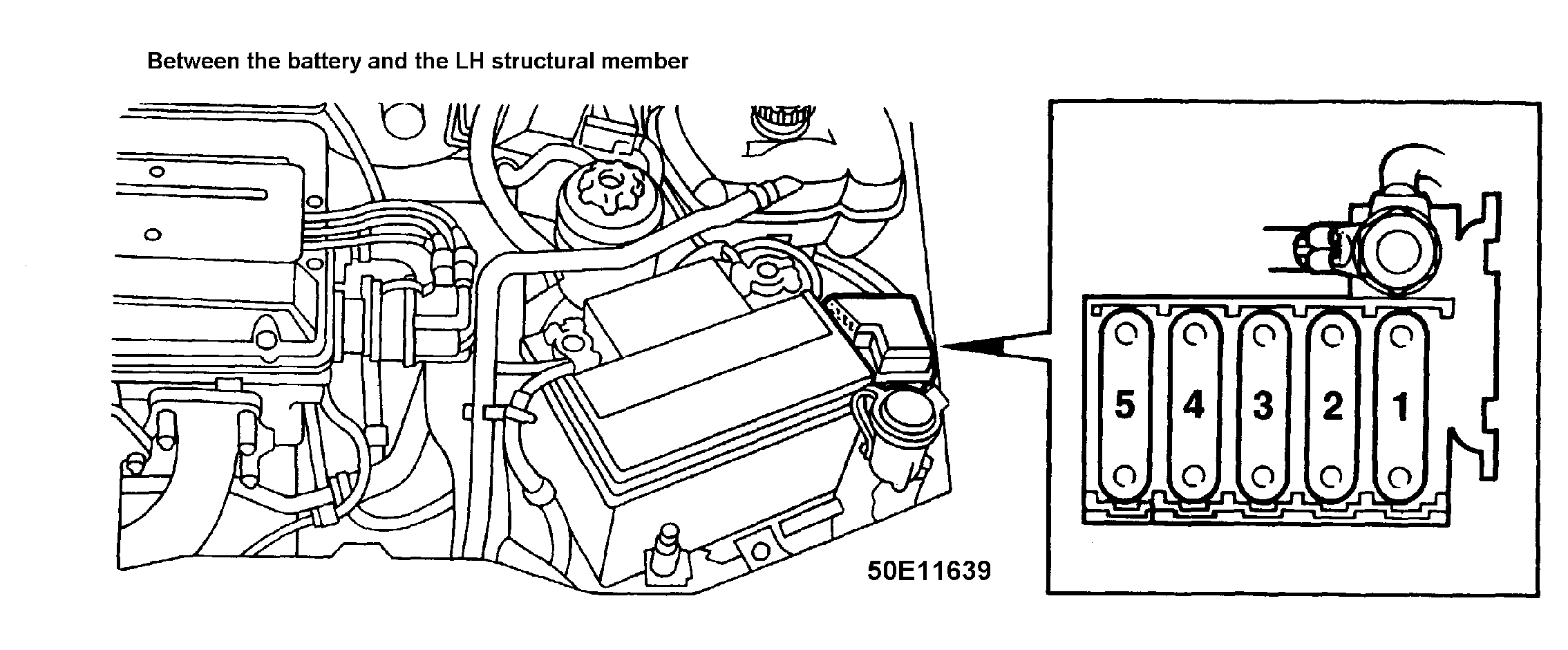

Fig 1: Underhood Maxi-Fuse Panel Identification

Courtesy of SAAB-SCANIA OF AMERICA INC.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

• 1 - 60 Amp  Power Supply for Fuses: 1, 4, 11, 13, 17, 23, 24, 25, 26 & 34
• 2 - 60 Amp  Power Supply for Fuses: 2, 5, 10, 12, 16, 27, 28, 33 & 35
• 3 - 60 Amp  Power Supply for Ignition Switch Fuse 20
• 4 - 60 Amp  Power Supply for Ignition Switch Fuse 21
• 5 - 60 Amp  Power Supply for Cabriolet Hood Control System
