Relay & Auxiliary Fuse Panel Identification

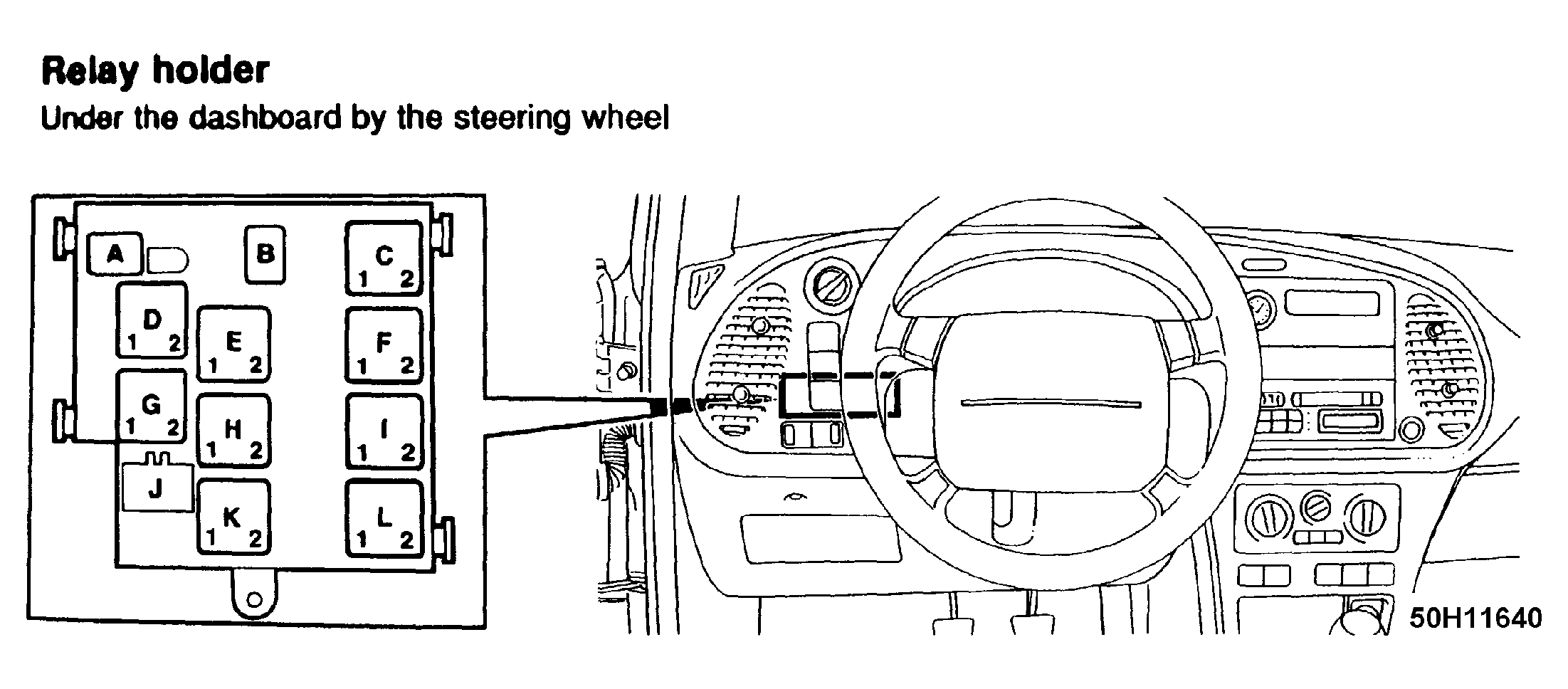

Fig 1: Relay & Auxiliary Fuse Panel Identification

Courtesy of SAAB-SCANIA OF AMERICA INC.

• A - Not Used
• B - Reversing Lights
• C - Shift Lock
• D - Rear Window Wiper, Intermittent Operation
• E - Ignition Switch
• F - Overheated 3-Way Catalytic Converter EXH
• G - Windscreen Wipers, Intermittent Operation
• I - Fuel Pump
• J - Not Used
• K - Starter Relay
• L - Sequential Multiport Fuel Injection System
