Traction Control System: Wiring Diagram

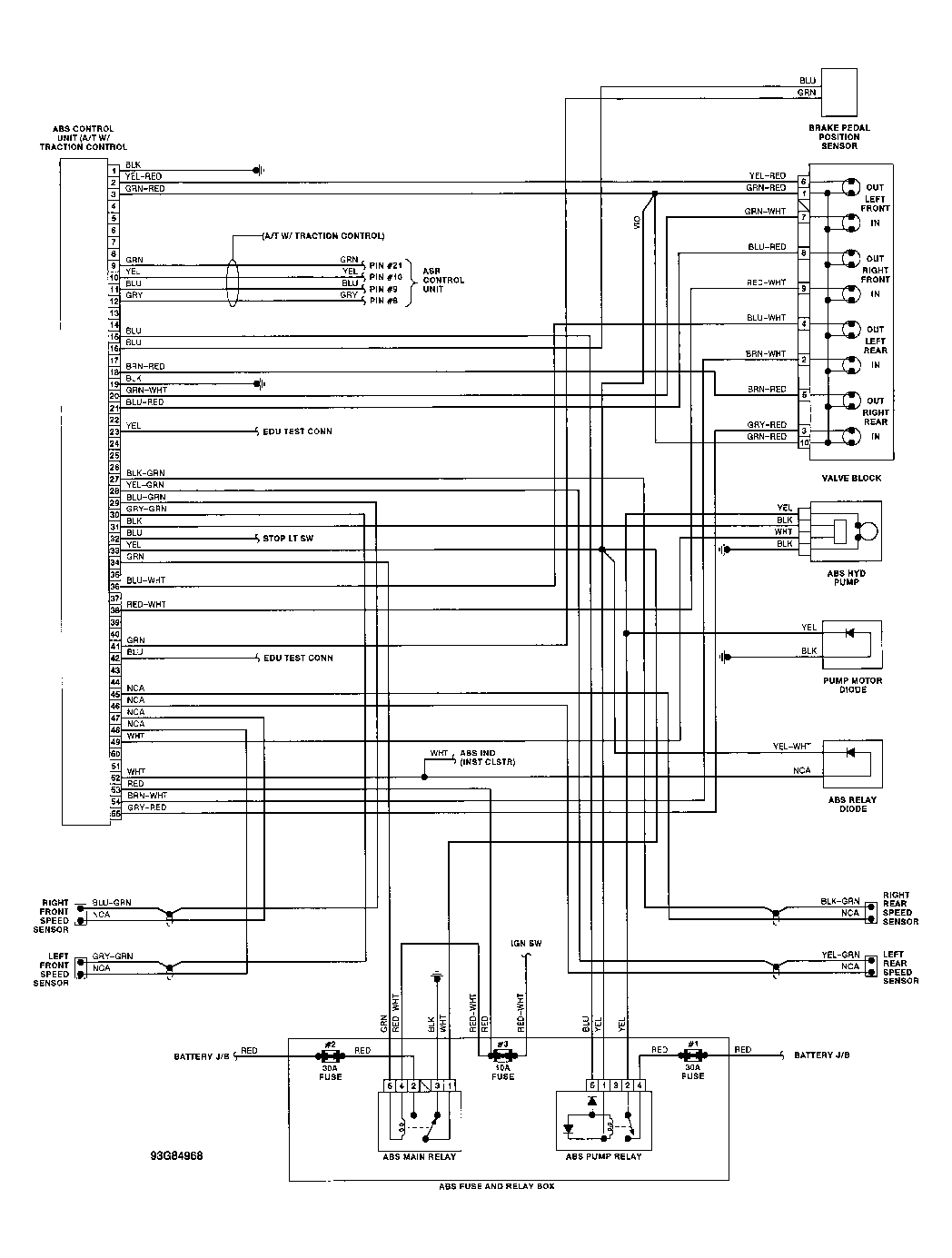

Fig 1: Saab Traction Control Wiring Diagram (Auto Trans - 1 of 2)
G93G84968

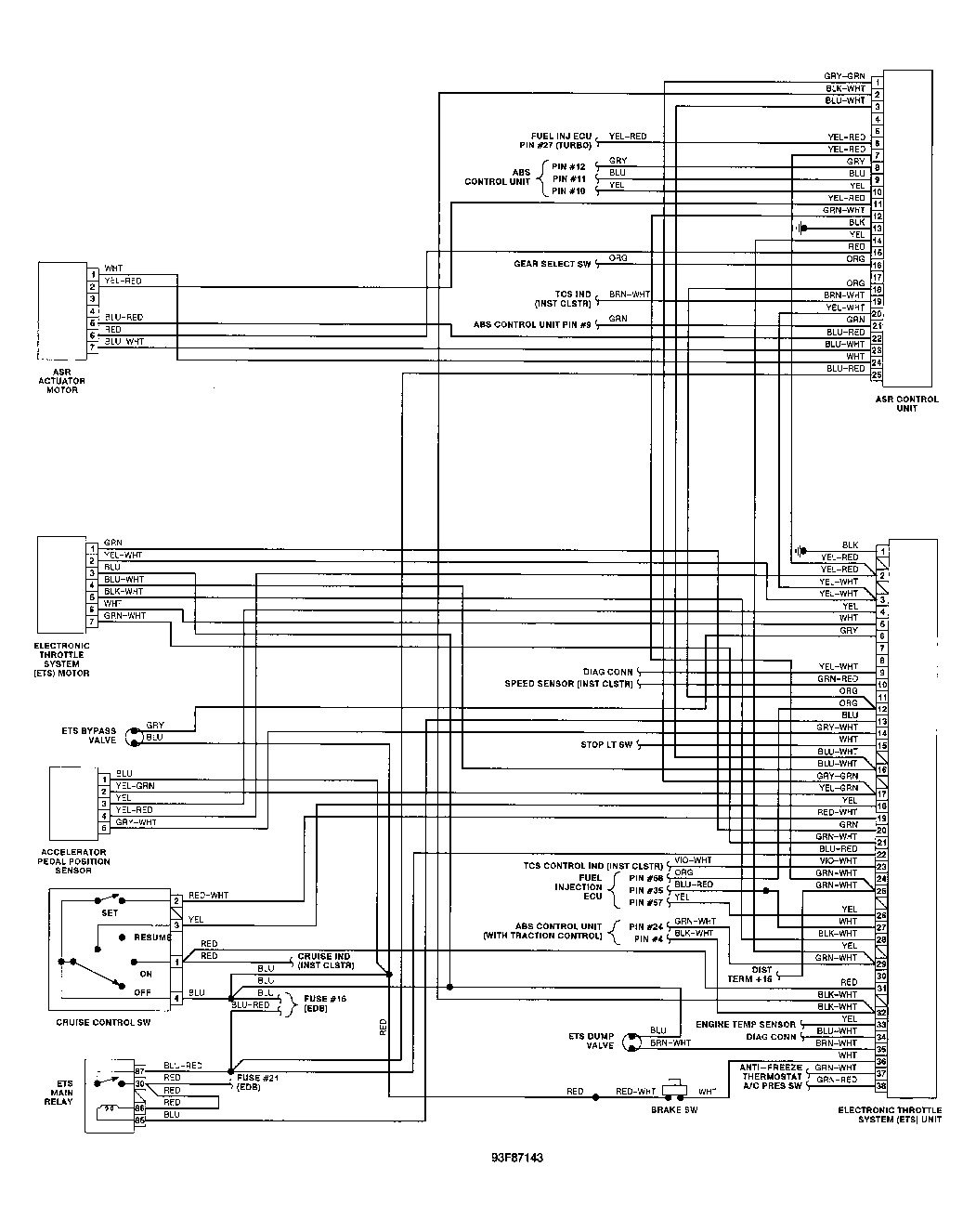

Fig 2: Saab Traction Control Wiring Diagram (Auto Trans - 2 of 2)
G93F87143

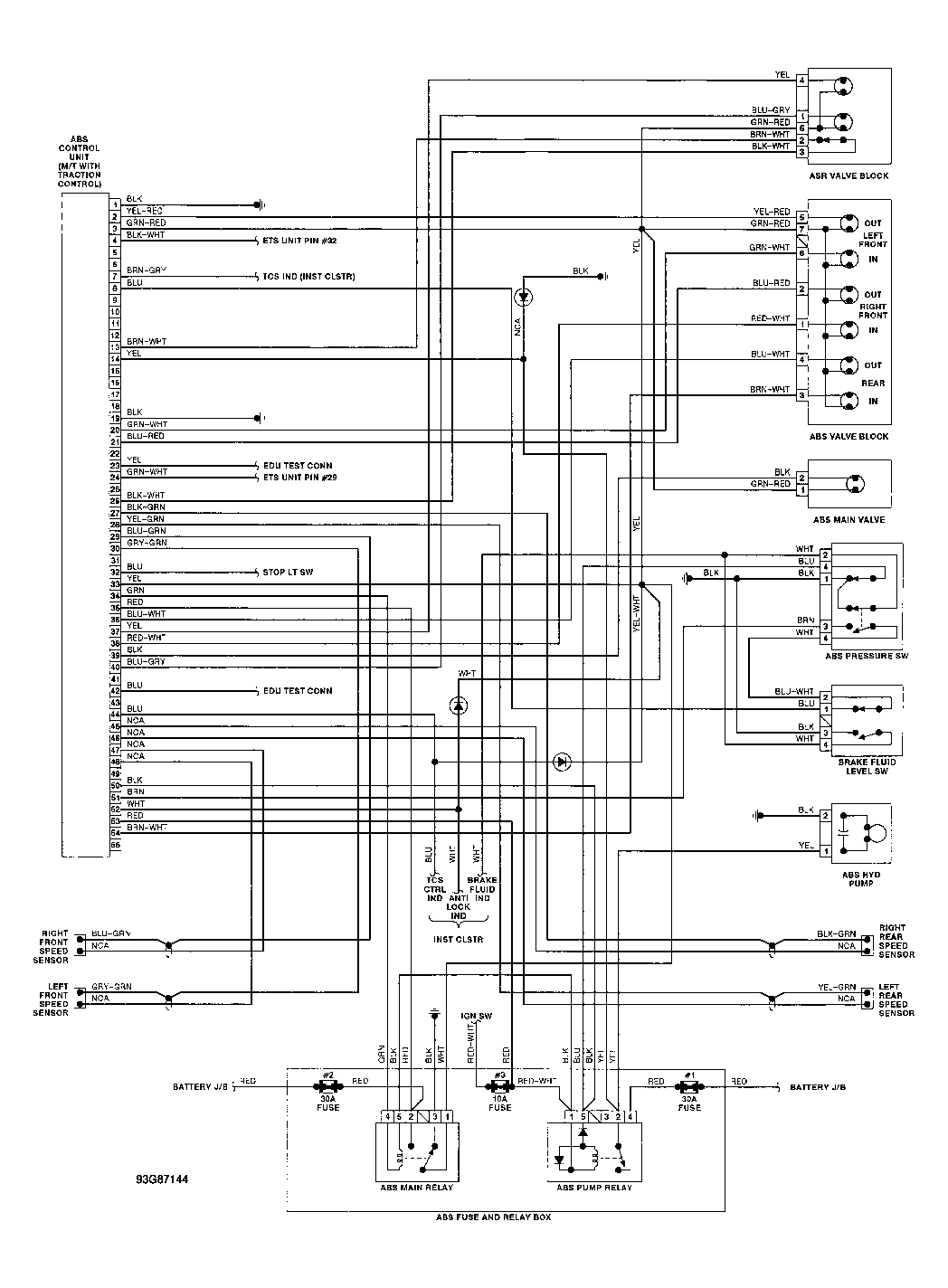

Fig 3: Saab Traction Control Wiring Diagram (Man Trans - 1 of 2)
G93G87144

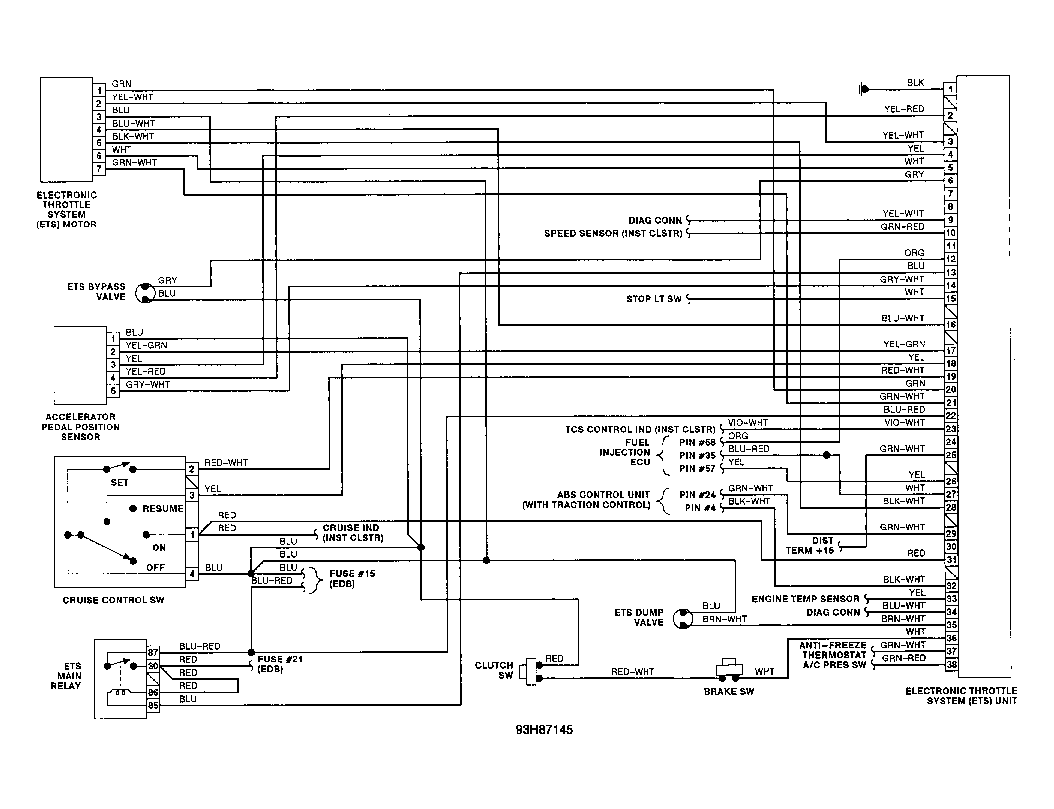

Fig 4: Saab Traction Control Wiring Diagram (Man Trans - 2 of 2)
G93H87145
