Anti-Lock Brake System: Wiring Diagram

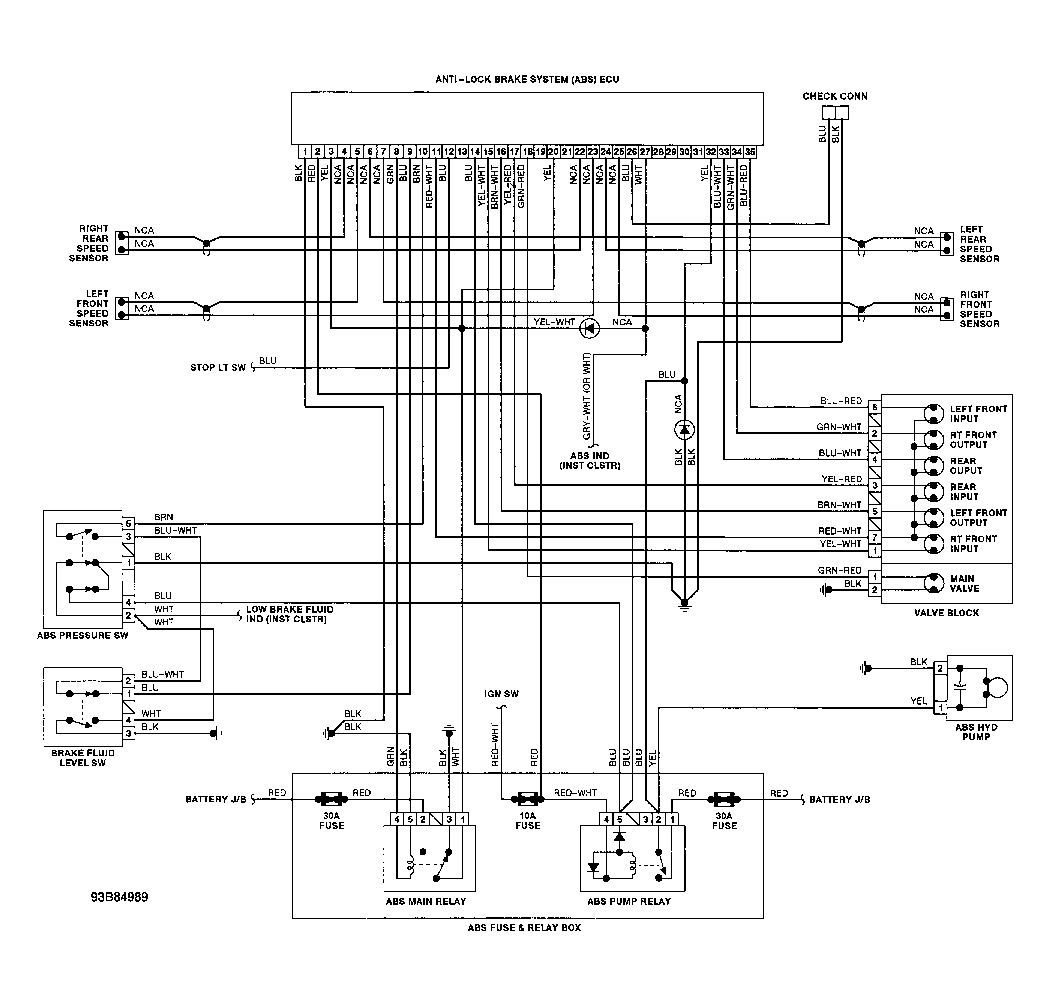

Fig 1: Anti-Lock Brake System Wiring Diagram (900 Series)

G93B84989
