Hydraulic Control Unit: Installation

To install, reverse removal procedure. Tighten bolts and fittings to specification. See TORQUE SPECIFICATIONS table at the end of this article. Refill reservoir. Bleed system. See BLEEDING BRAKE SYSTEM. Ensure brakes and clutch (if equipped) work properly.

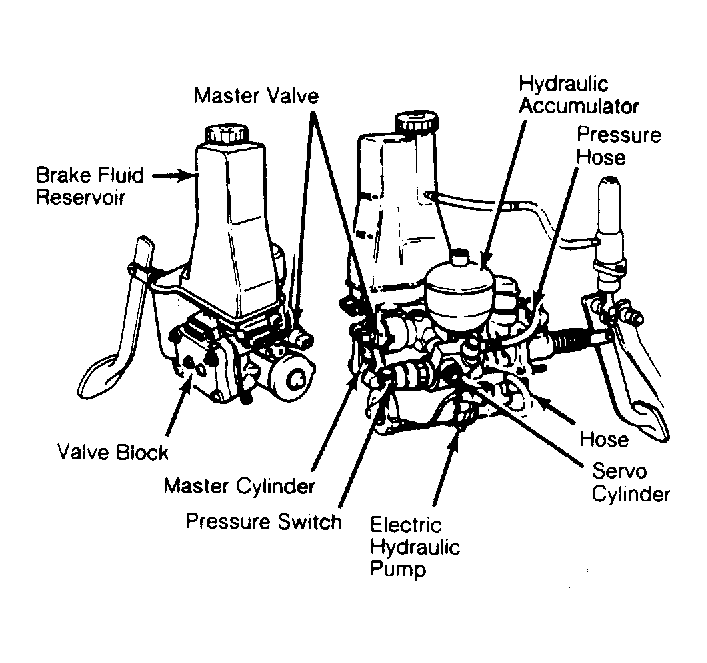

Fig 1: Exploded View Of Hydraulic Control Unit
G58280Courtesy of SAAB-SCANIA OF AMERICA, INC.
