Repair and Diagnosis: Transmission: Clutches: Description

The clutch is a single dry plate, diaphragm spring type. Clutch operates hydraulically by a clutch master cylinder and a release cylinder within the clutch housing. See Fig 1 .

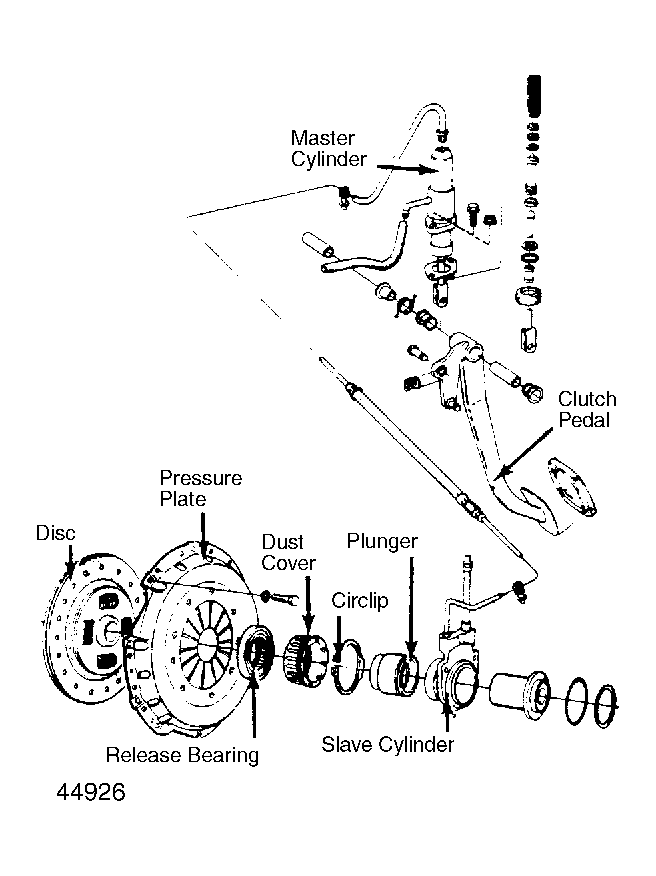

Fig 1: Exploded View Of Clutch Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.
