Revised Cruise Control Switch (12/90-0075)

WARNING: This page is about the 900 Base, 2D Hatchback, 2.0 D, Automatic, which is a different variant/trim than selected.

Publication date: 1992-03-01
Reference number: 12/90-0075
Supersedes refnos: 03/92-0193

REVISED CRUISE CONTROL SWITCH

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03/92-0193, Date of Issue: March 1992

SAAB:	1990-91 1/2 900 and 9000 models
CATEGORY:	Electrical

Superceded Bulletin(s): 12/90-0075, Date of Issue: December 1990

SUBJECT

Revised Cruise Control Switch

NOTE: Supersedes PSI 12/90-0075

SERVICE INFORMATION

Incorrect adjustment of the brake or clutch switches can cause the cruise controls to be inoperative. Typically the customer complaint is that the cruise control speed set function does not work. The brake and clutch switches (both switches are identical) were modified beginning with 1990 models to incorporate a self-adjusting ratcheting mechanism. This ratcheting mechanism can sometimes over-adjust (ratchet too far in) preventing the pedal from depressing the switch's pushrod actuator when the pedal is at rest, leaving an open circuit in the switch.

Beginning with the VIN's listed below, a revised pedal switch that has a greater resistance to over-adjusting was introduced into production. This switch, P/N 43 50 443, is available as a replacement to remedy complaints of switches that over adjust.

NOTE: With the introduction of the new switch, the modification procedure described in PSI 12/90-0075 (Sec. 3, p.5) should no longer be performed. Replace the faulty pedal switch with a new replacement switch.

Before replacing the pedal switch on cars with manual transmission, however, the clutch pedal operation should be checked to make sure it is returning completely (see PSI 07/90-0012 , Sec. 4, p. 1 ). If one switch on a car with manual transmission requires replacement, the other switch should also be replaced at the same time.

The revised pedal switch was introduced into production as follows:

900: M2500209-M7001460
9000: M1027855-

PARTS REQUIRED

PARTS INFORMATION

Description	Part Number
Pedal Switch	43 50 443

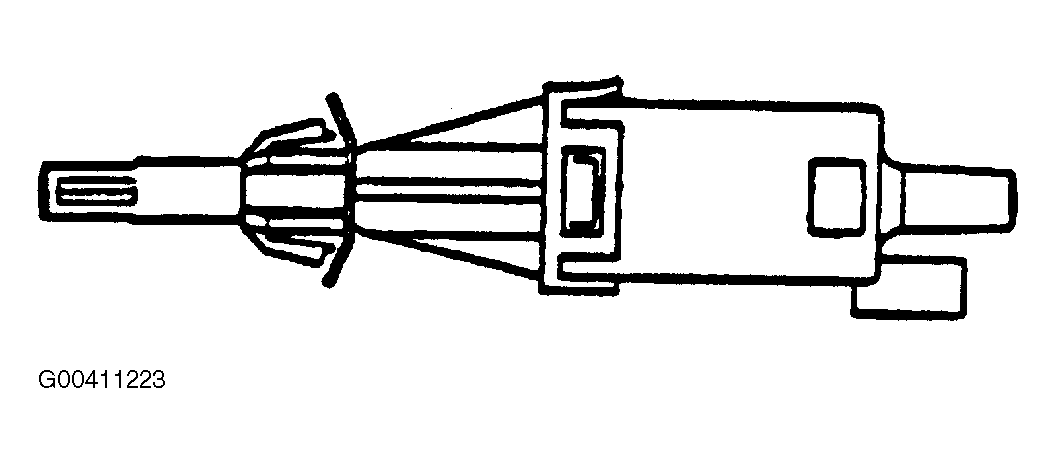

Fig 1: A Revised Pedal Switch, P/N 43 50 443, Is Available As A Replacement

WARRANTY INFORMATION

For warranty claims where a customer complaint exists, use Failure Coding 36854-79-0-01-01. Time allowance for one or both switches is Labor Operation No. 36854, (0.3 hour).
