35 Pin Connector Computer System Wiring Diagram

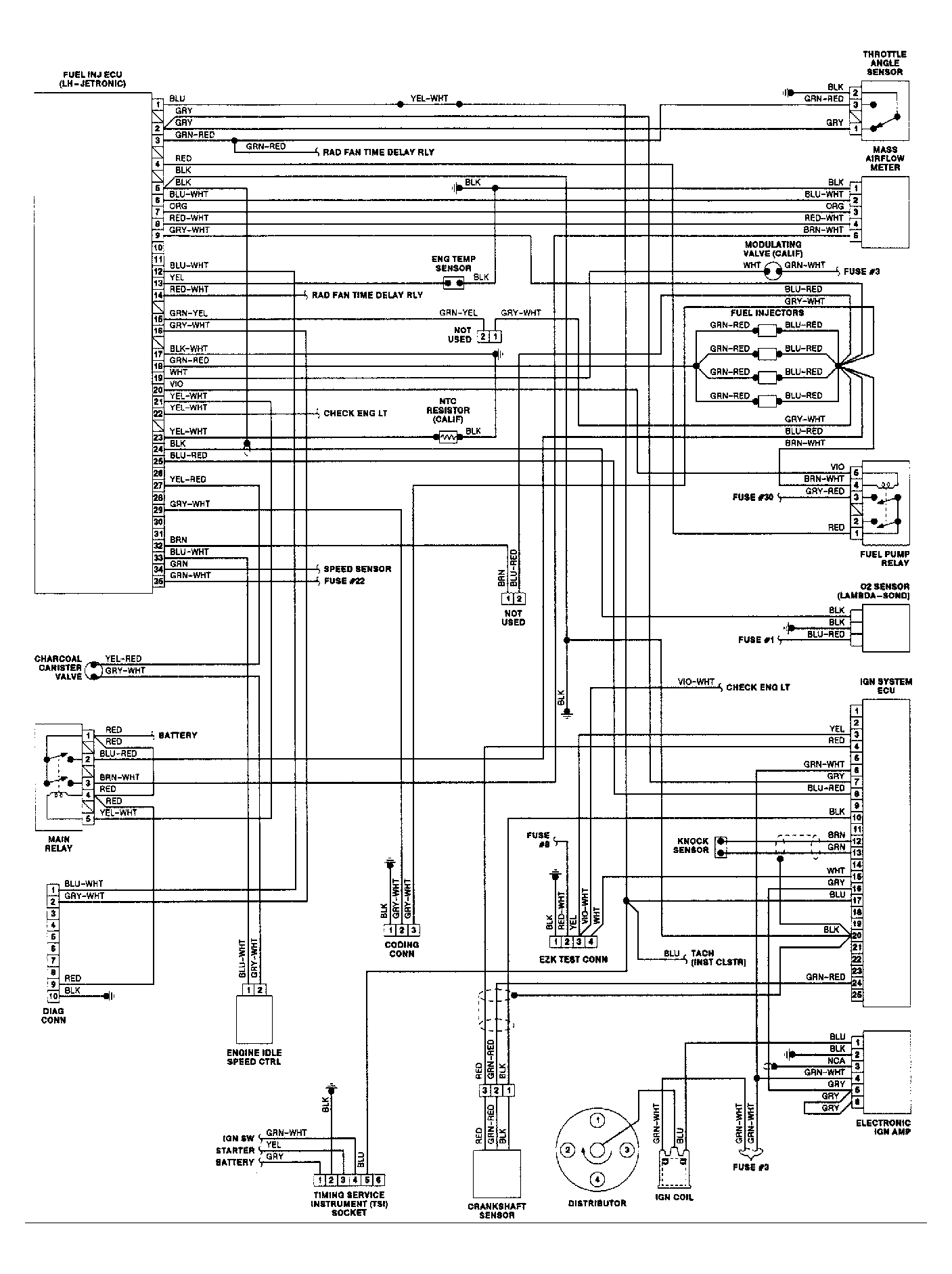

Fig 1: 900 Series 2.0L 16-Valve (35 Pin)

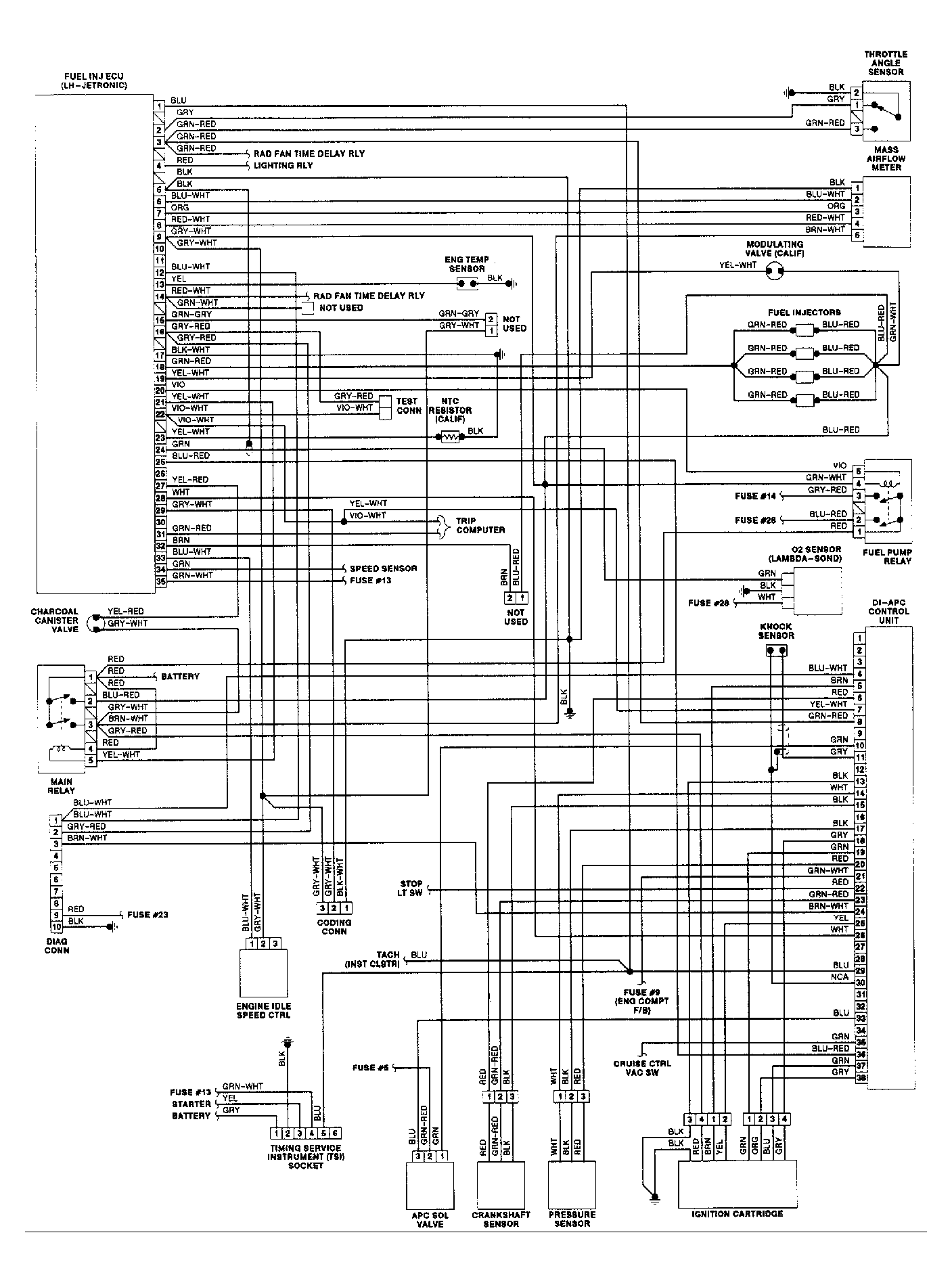

Fig 2: 900 Series 2.0L Turbo (35 Pin)

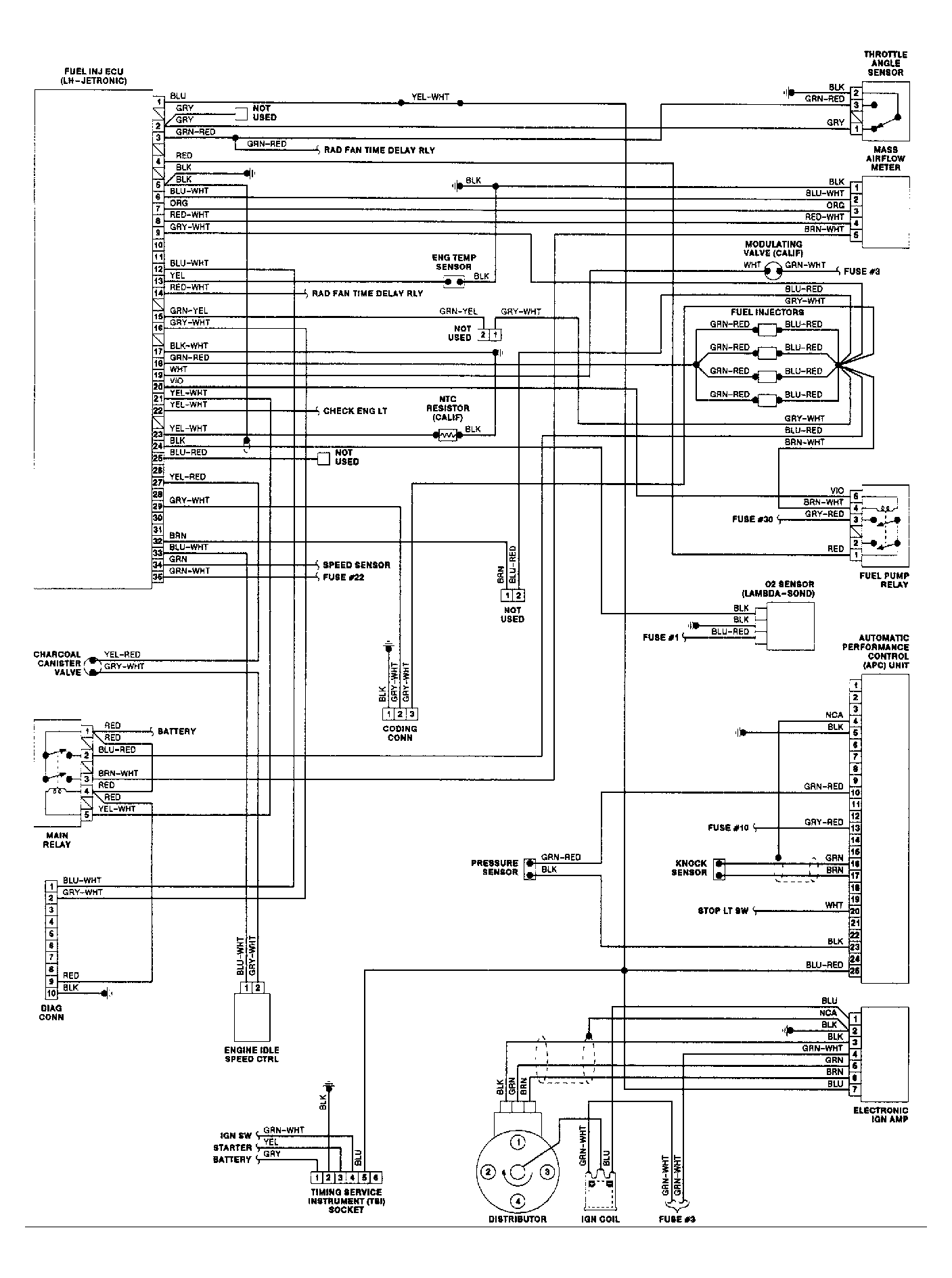

Fig 3: 9000 Series 2.0L 16-Valve (35 Pin)

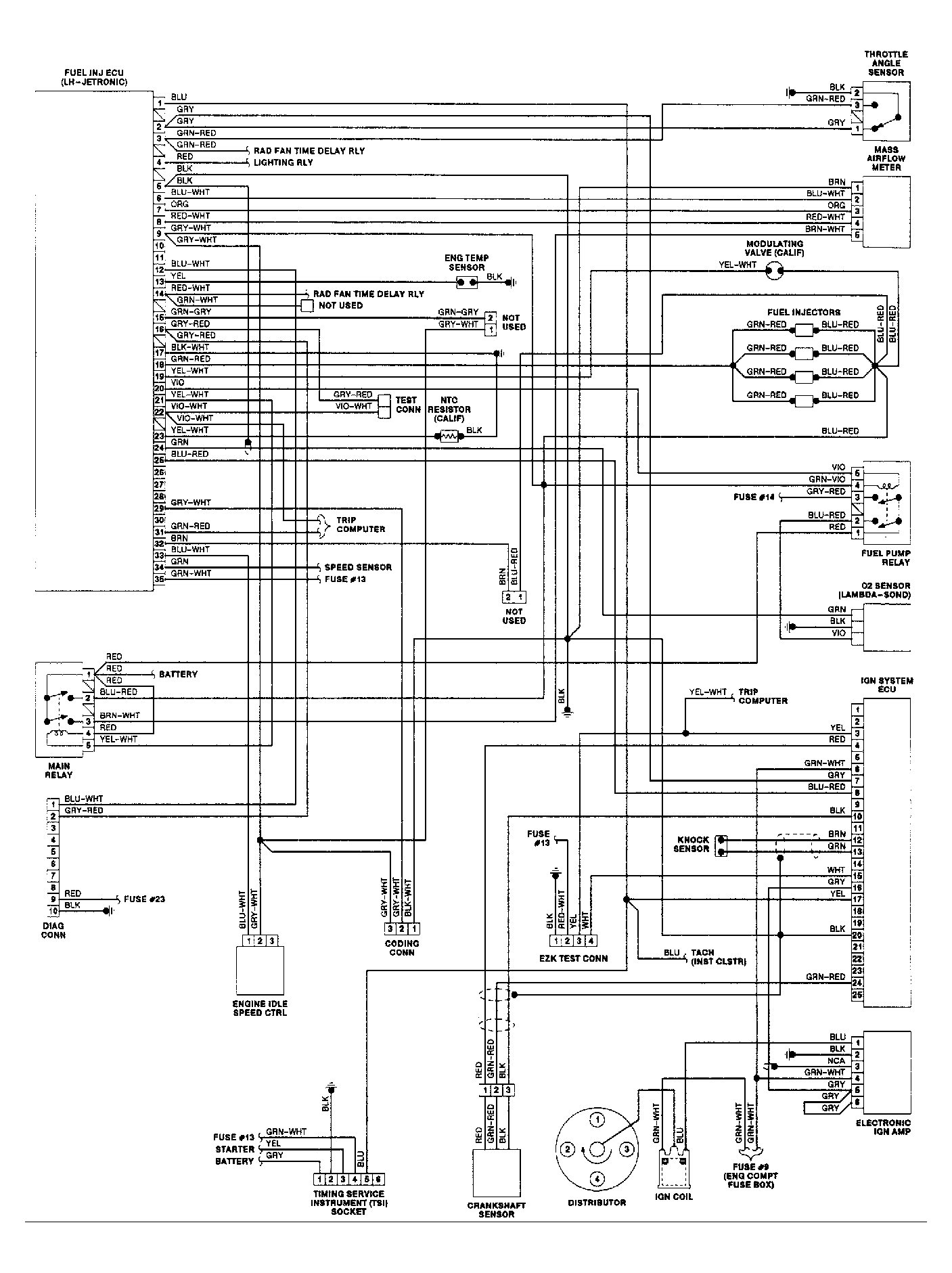

Fig 4: 9000 Series 2.0L Turbo (35 Pin)
