25 Pin Connector Computer System Wiring Diagram

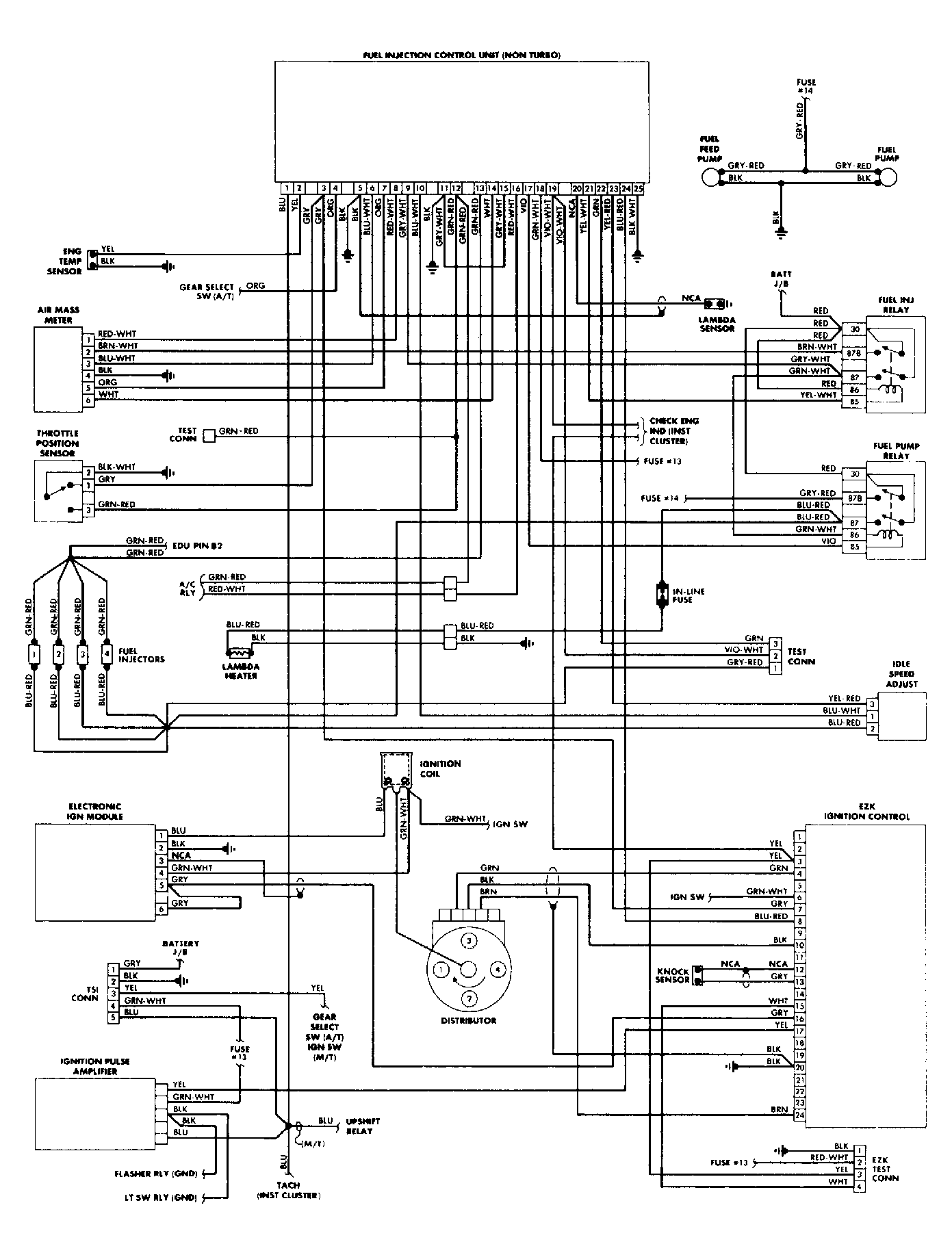

Fig 1: 900 Non-Turbo Series Engine Control System (25 Pin)

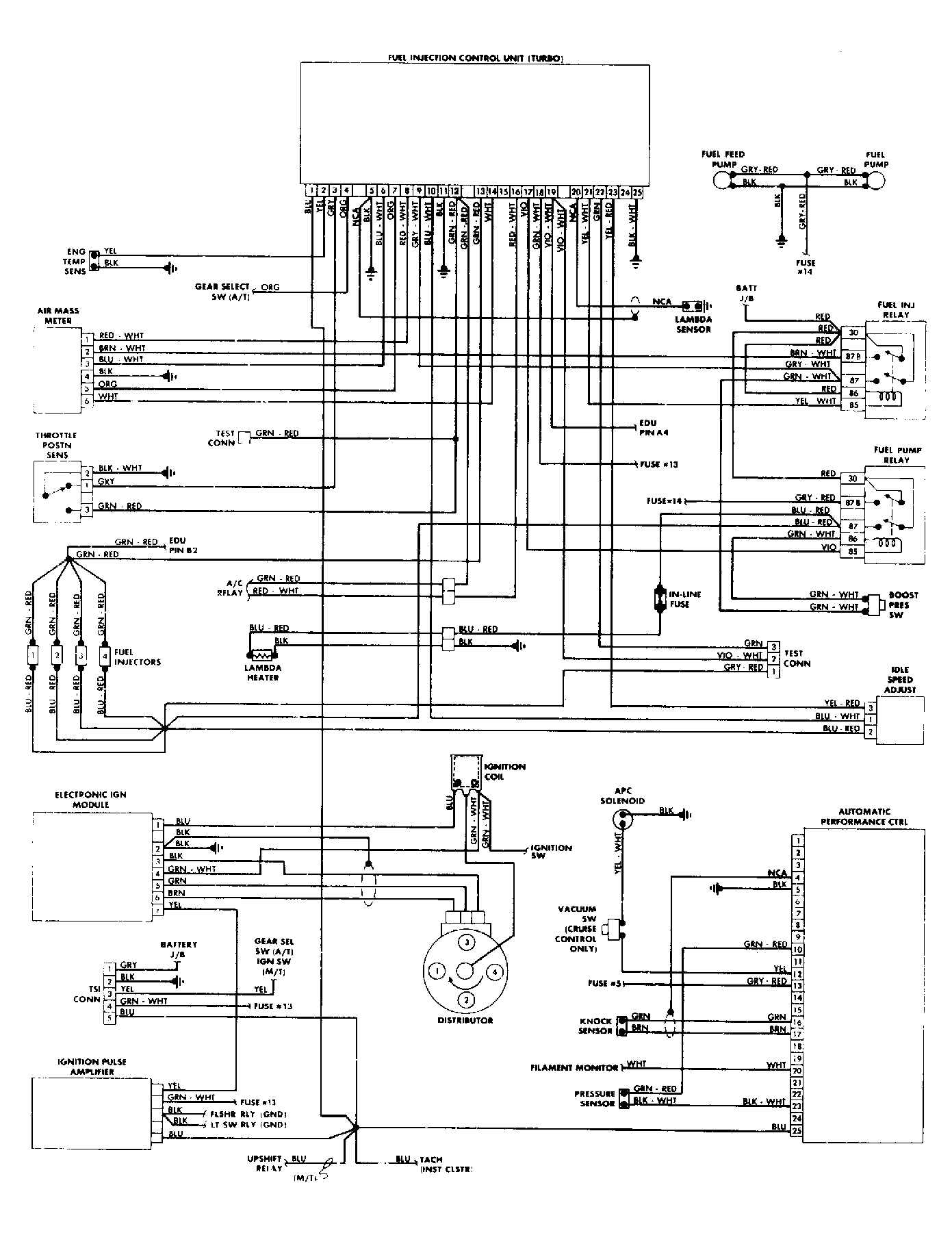

Fig 2: 900 Turbo Series Engine Control System (25 Pin)

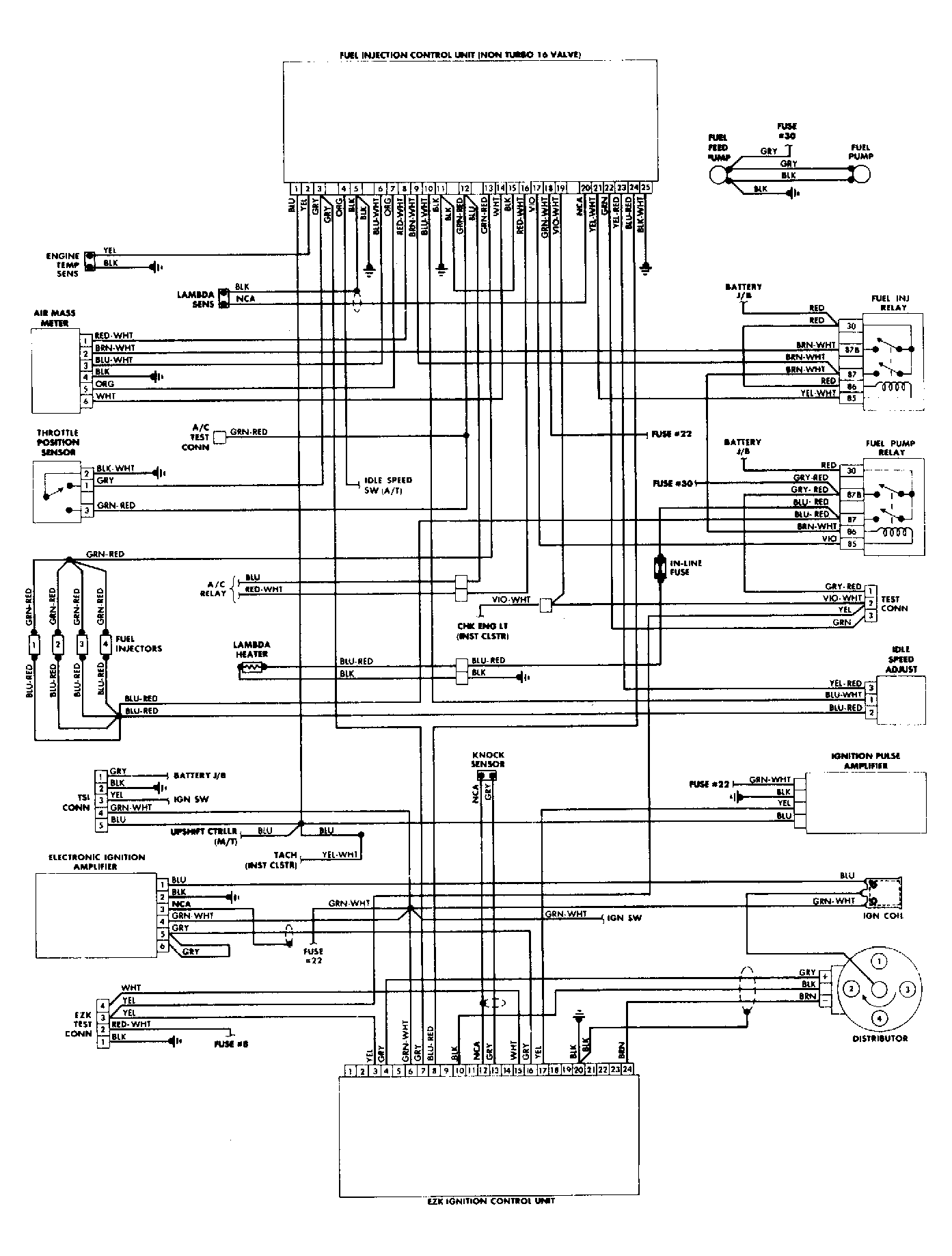

Fig 3: 9000 Non-Turbo Series Engine Control System (25 Pin)

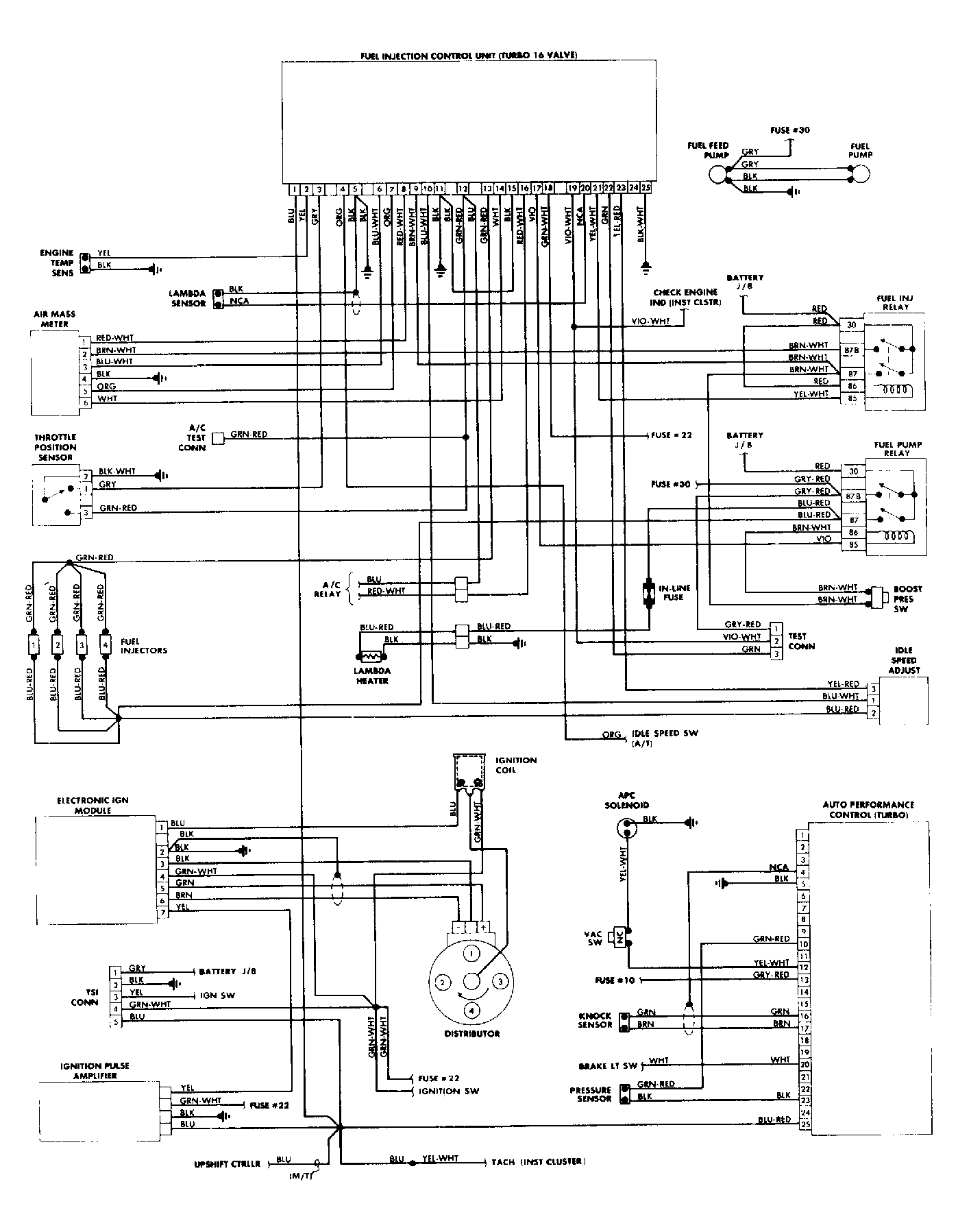

Fig 4: 9000 Turbo Series Engine Control System (25 Pin)
