Fuel Injection System - LH-JETRONIC
>>
Wiring Diagrams
Wiring Diagrams

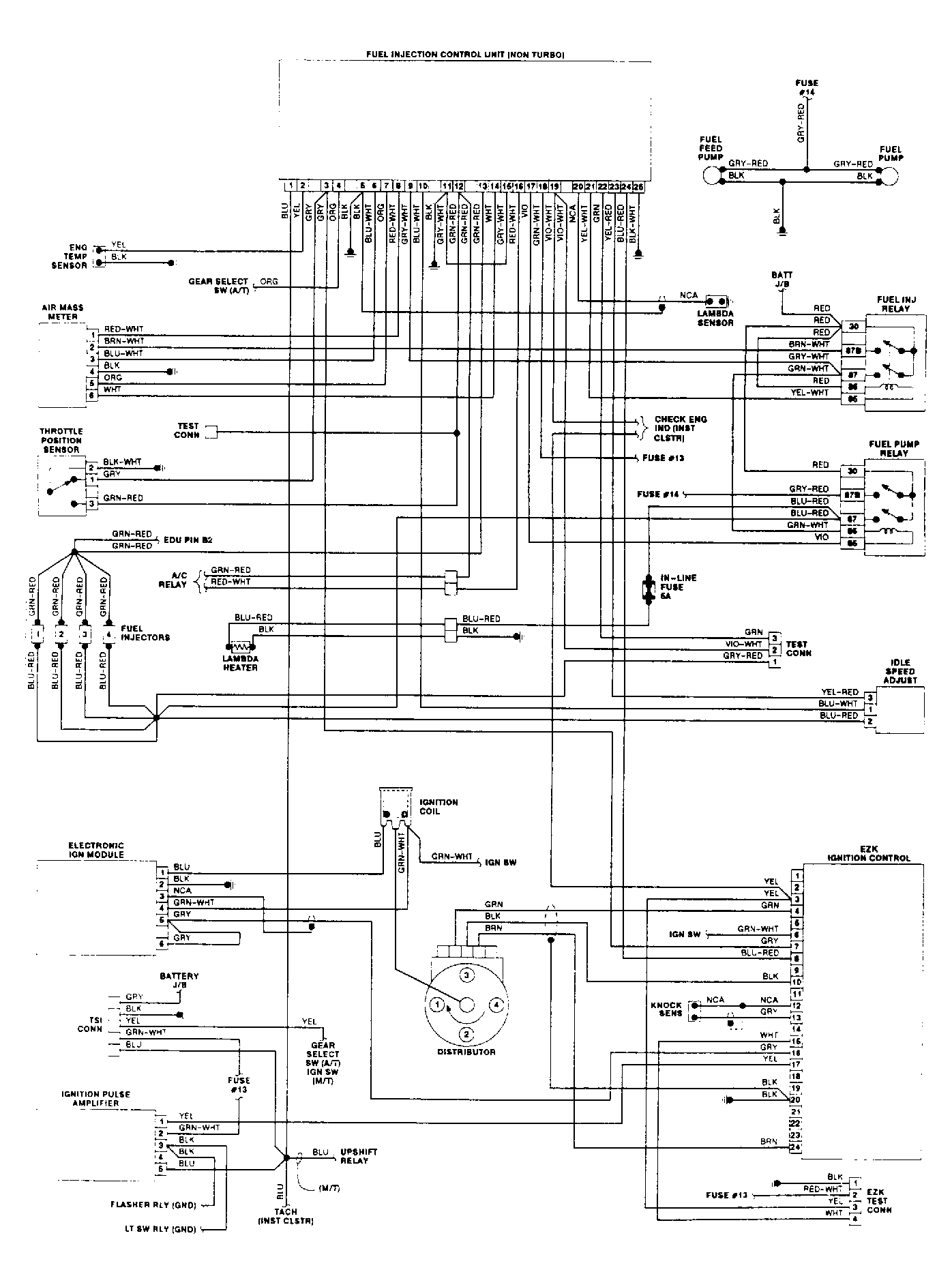

Fig 1: LH-Jetronic Wiring Diagram (900 Series - Non-Turbo)

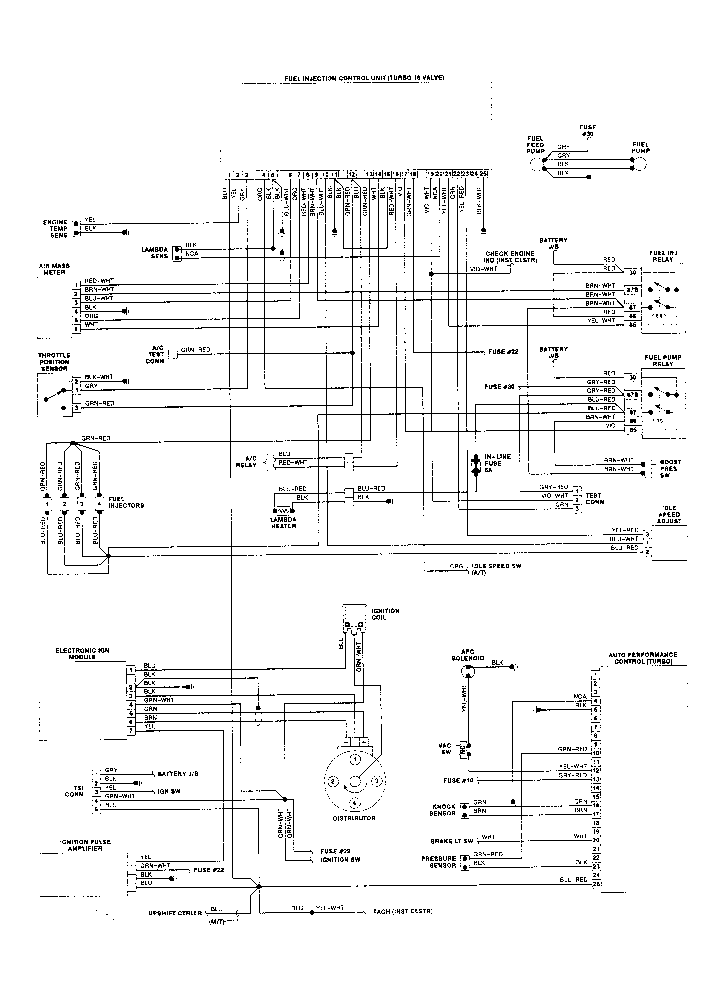

Fig 2: LH-Jetronic Wiring Diagram (900 Series - Turbo)
Fig 3: LH-Jetronic Wiring Diagram (9000 Series - Non-Turbo)
Fig 4: LH-Jetronic Wiring Diagram (9000 Series - Turbo)
