Fuel Injection System - BOSCH Cis (Lambda): Wiring Diagram

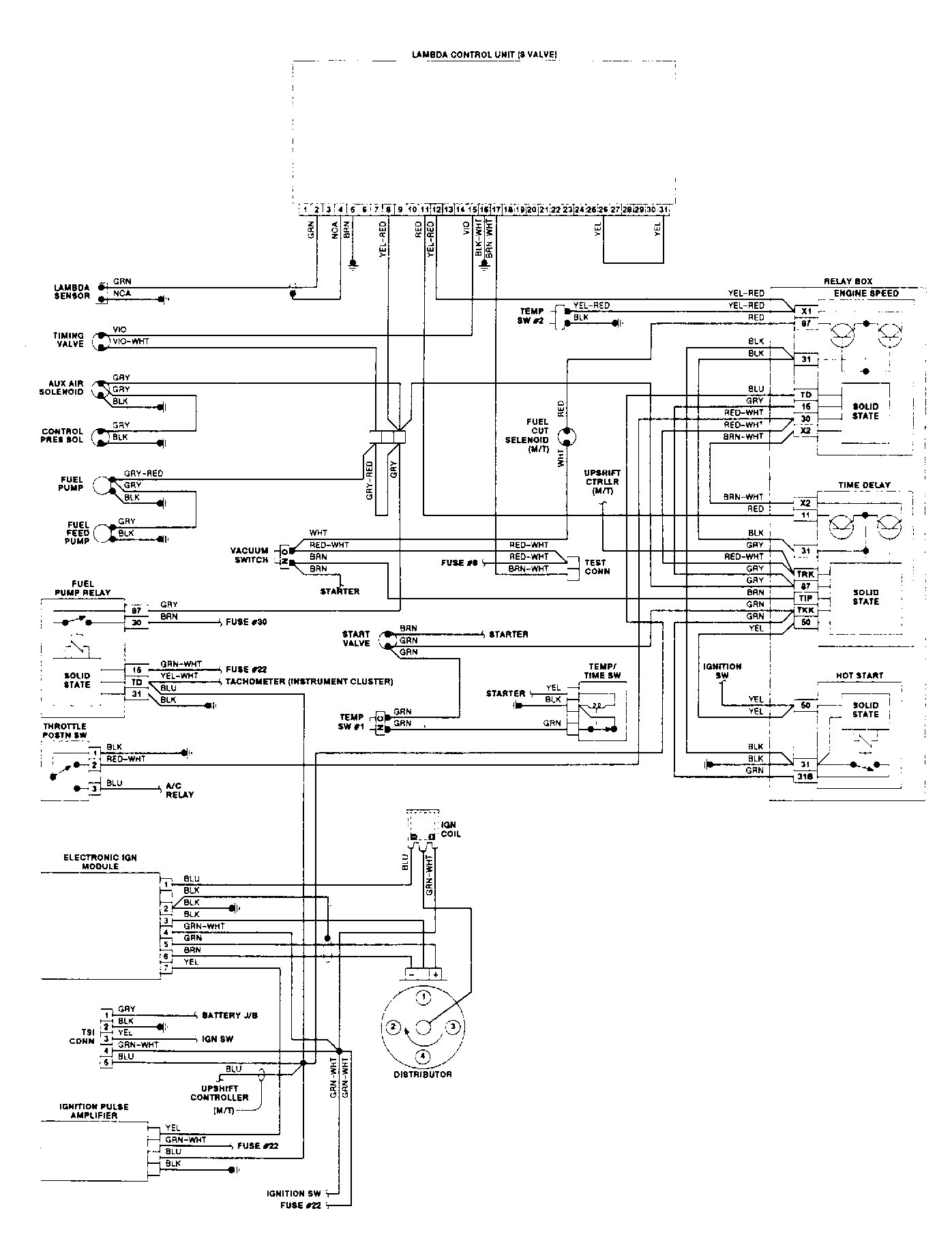

Fig 1: CIS (Lambda) Wiring Diagram (8-Valve Engine)

G93400
