Gearshift Linkage: 9000

  1. Working inside passenger compartment, pry up rubber boot around gearshift lever. Loosen the pinch bolt securing selector rod to transaxle. Pinch bolt is on engine side of firewall above steering rack. See Fig 1 .
  2. Lock gearshift lever in reverse gear by inserting a 4 mm drill through locating holes in gearshift lever and gearshift lever housing.
  3. Ensure transaxle is in Reverse. Tighten pinch bolt on selector rod. Remove drill and refit rubber boot.

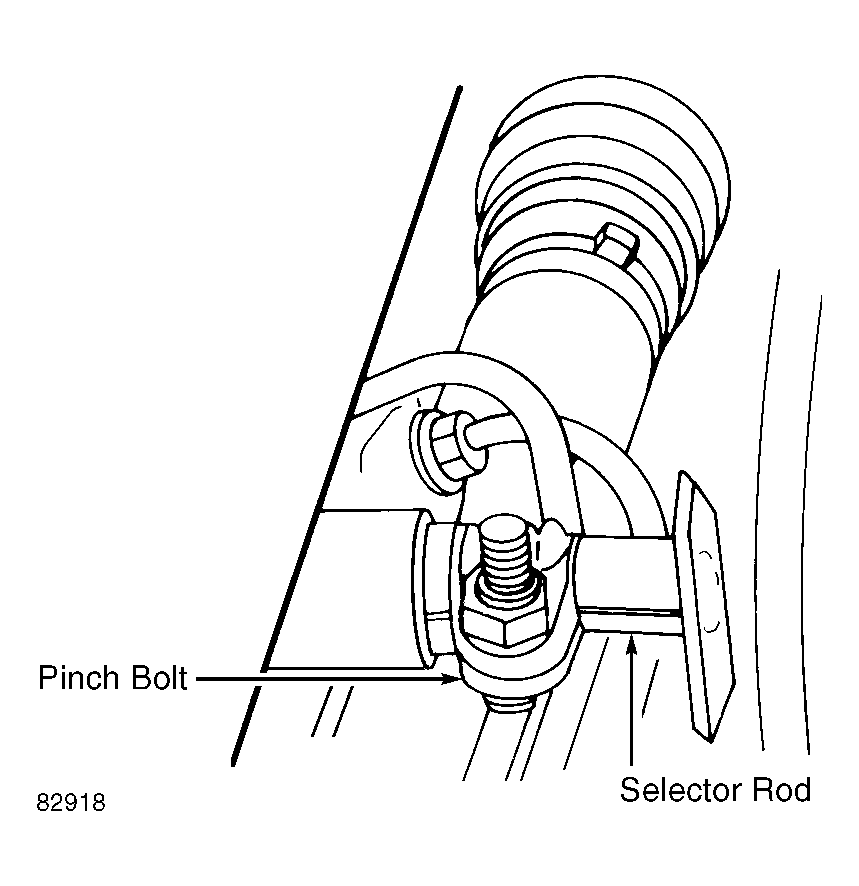

    Fig 1: Adjusting 9000 Series Gearshift Linkage
    G82918Courtesy of SAAB-SCANIA OF AMERICA.
