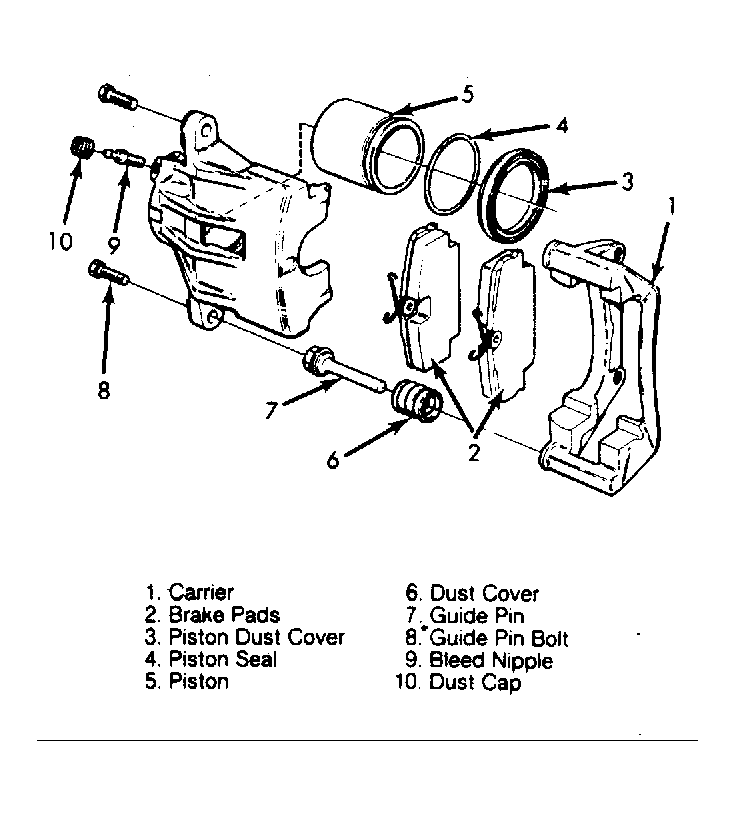

Caliper Assembly: Reassembly
WARNING: This page is about a different car, the 1990 Saab 9000 and 1989 Saab 9000. However, it is still accessible from the selected car via links, so may be relevant.
Lubricate piston seal with brake fluid. Install new piston seal. Fit a new dust cover onto piston. Install dust cover on caliper body. Install piston. Be careful not to damage dust cover.
Lubricate piston seal with brake fluid. Install new seal in caliper body. Install a new dust cover. Screw piston into cylinder by turning adjusting screw. Locate dust cover correctly on caliper body. Install piston and retainer. Install spring on handbrake lever. Install dust covers with bushings.
