Wiring Diagrams

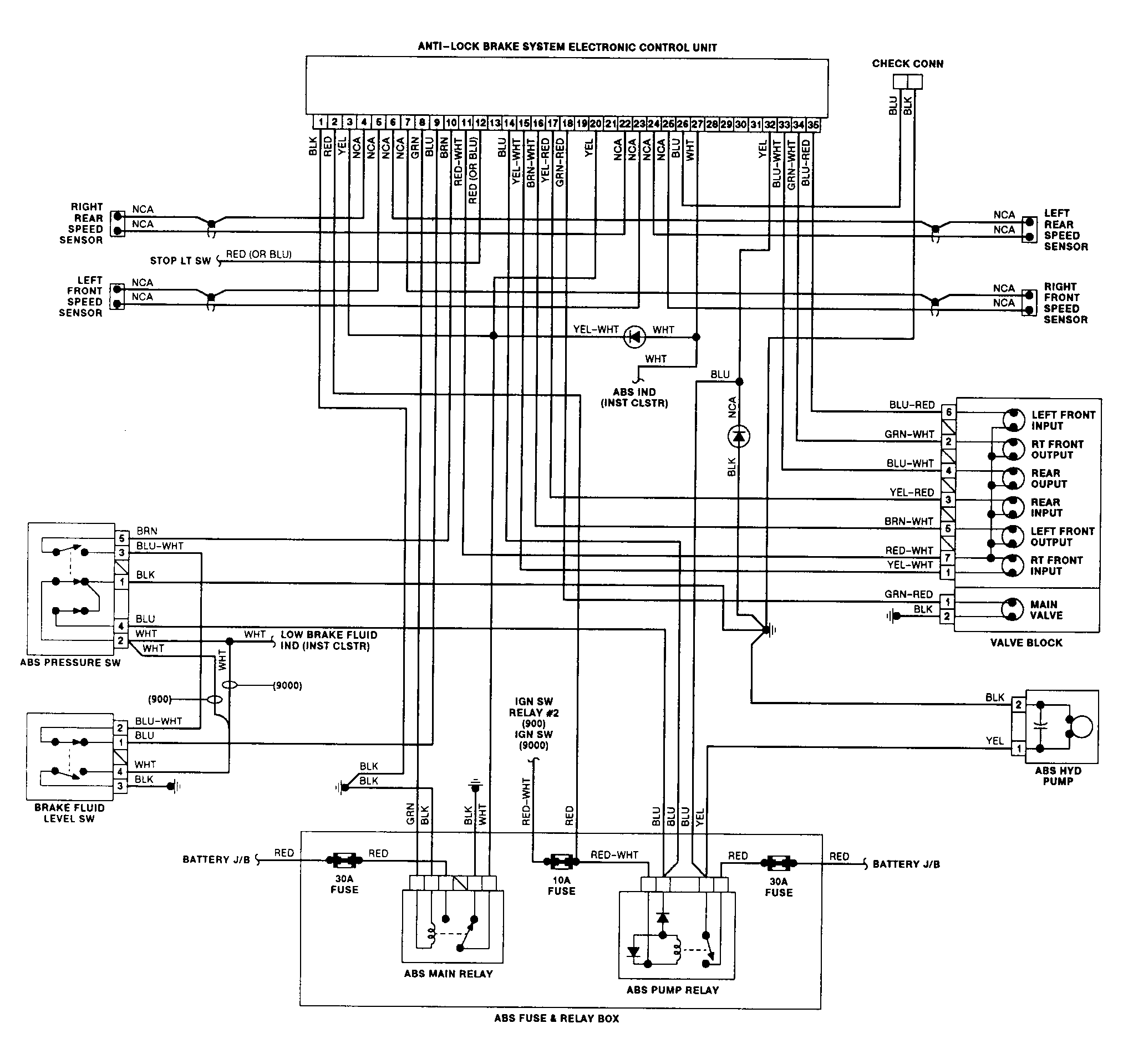

Fig 1: Anti-Lock Brake System Wiring Diagram (900 & 9000 Series)

G92C01406

For additional diagrams, see appropriate article below:

For 1987 9000 Series, see: WIRING DIAGRAMS .
For 1988 9000 Series, see: WIRING DIAGRAMS .
For 1989 9000 Series, see: WIRING DIAGRAMS .
For 1990 9000 Series, see: WIRING DIAGRAMS .
For 1991 900 Series, see: WIRING DIAGRAMS .
For 1991 9000 Series, see: WIRING DIAGRAMS .
For 1992 900 Series, see: WIRING DIAGRAMS .
For 1992 9000 Series, see: WIRING DIAGRAMS .
