Fuel Injection System - Cis (8-Valve): Wiring Diagram

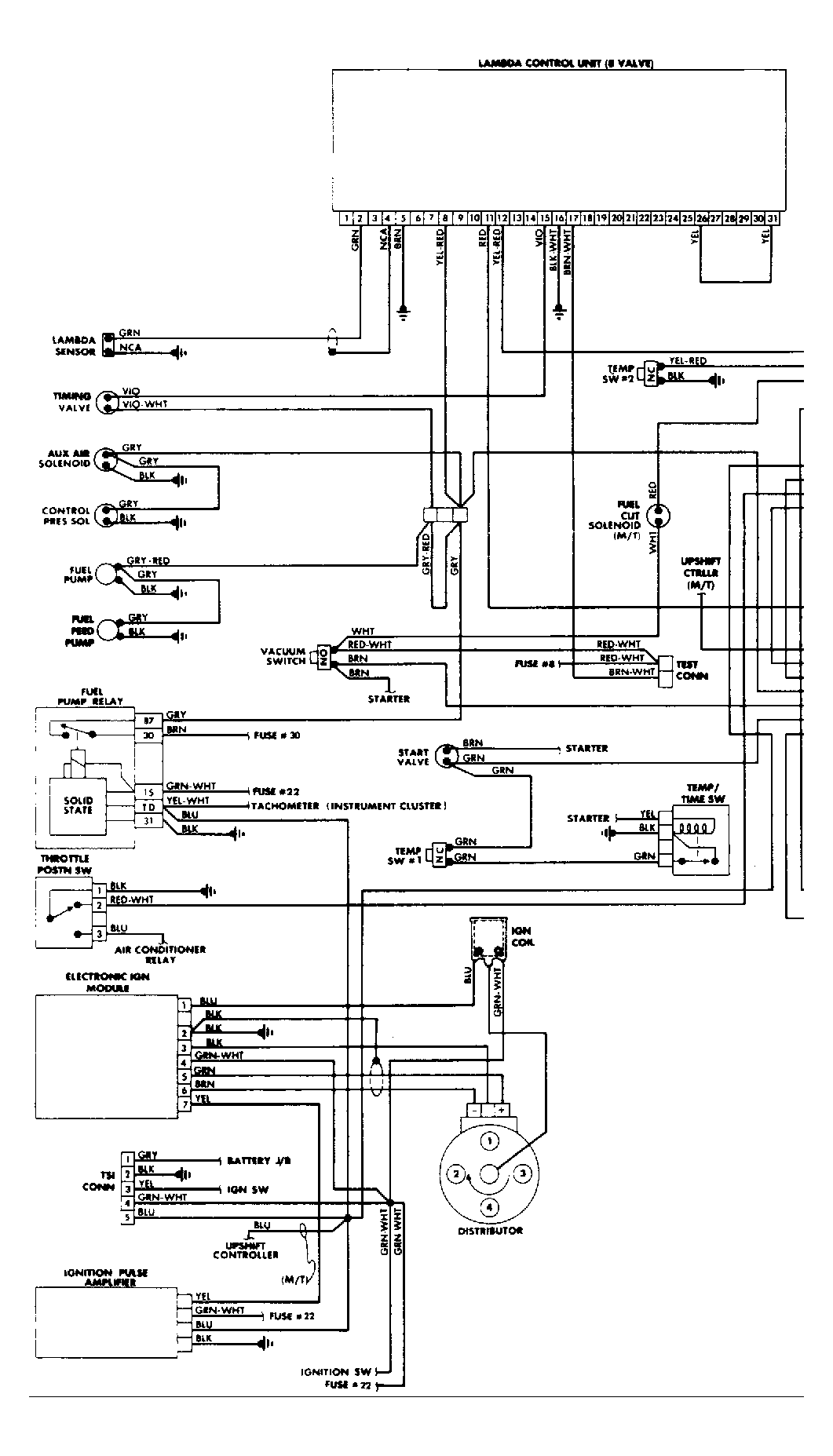

Fig 1: CIS (Lambda) Wiring Diagram for Saab 900

G62315
