Fuel Injection System - LH (16-Valve): Wiring Diagram

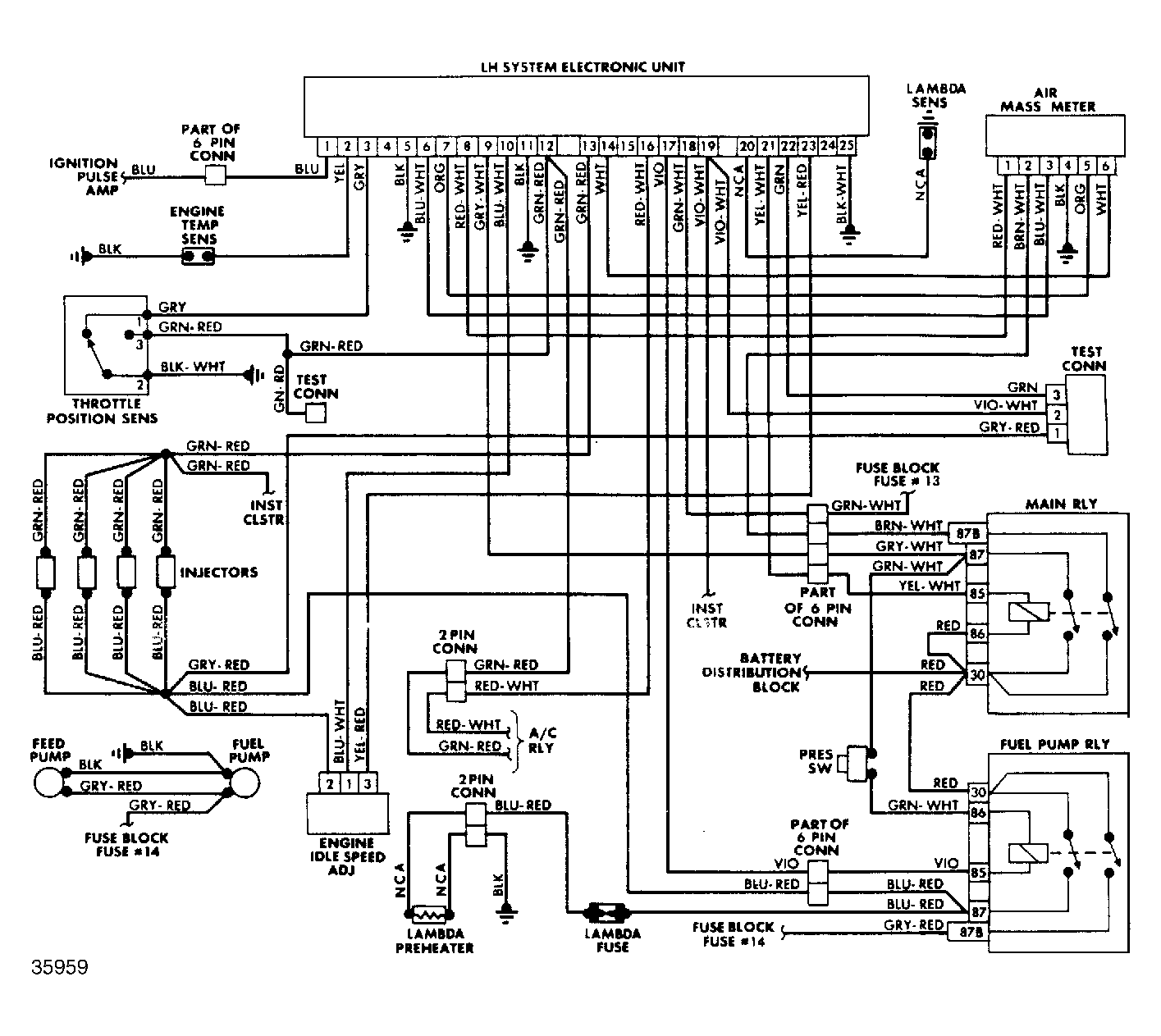

Fig 1: LH Jetronic Fuel Injection System Wiring Diagram

G35959
