Tune-Up - 4-CYL: Adjustments: Distributor

All models are equipped with Bosch Hall Effect breakerless, electronic ignition systems. No adjustments are required for distributor. Air gap and pick-up coil resistance are not serviceable.

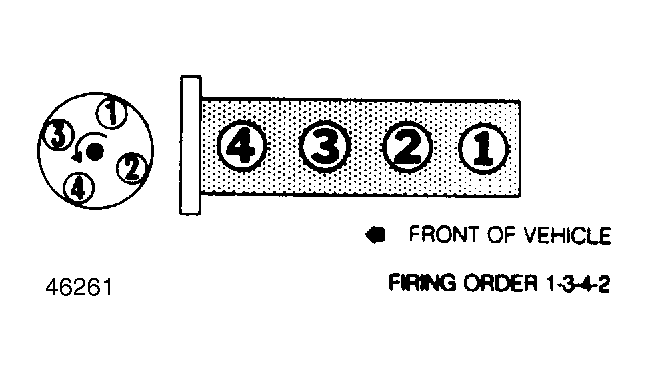

Fig 1: Firing Order & Distributor Rotation
G46261
