Home >> Saab >> 1978 >> 99 L >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Wiring Diagram

Wiring Diagrams: Wiring Diagram

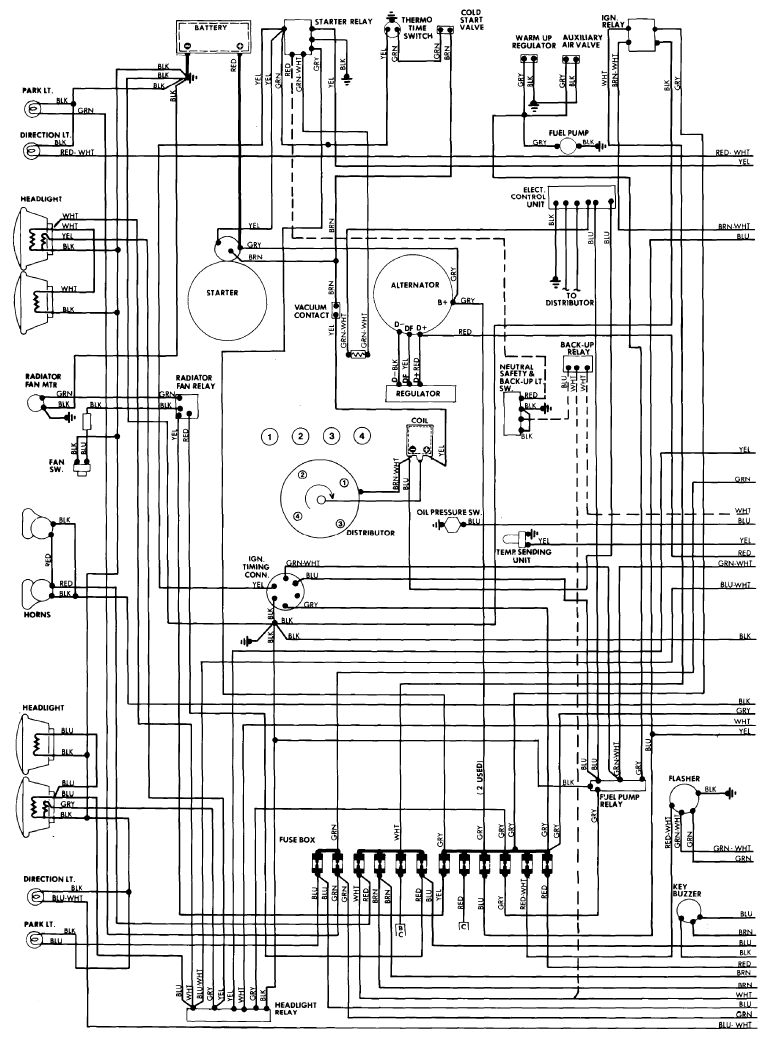

Fig 1: Wiring Diagram - 99 (1 of 2)

G09303569

Courtesy of SAAB-SCANIA OF AMERICA, INC.

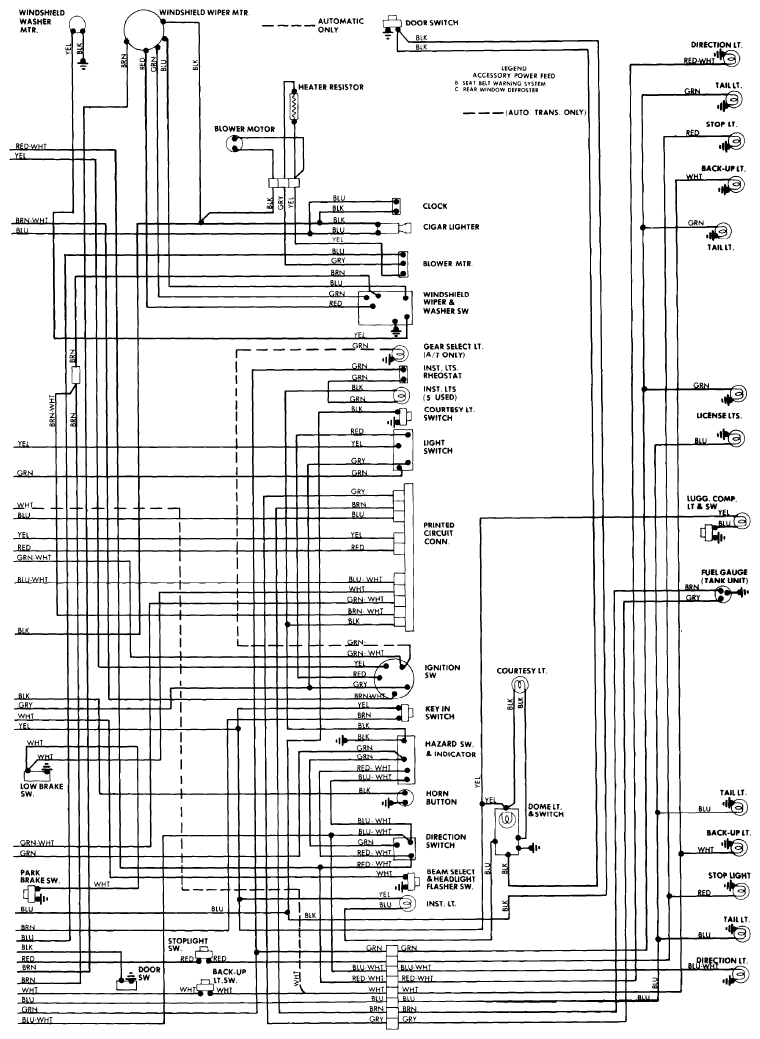

Fig 2: Wiring Diagram - 99 (2 of 2)

G09303570

Courtesy of SAAB-SCANIA OF AMERICA, INC.
