Wiring Diagrams

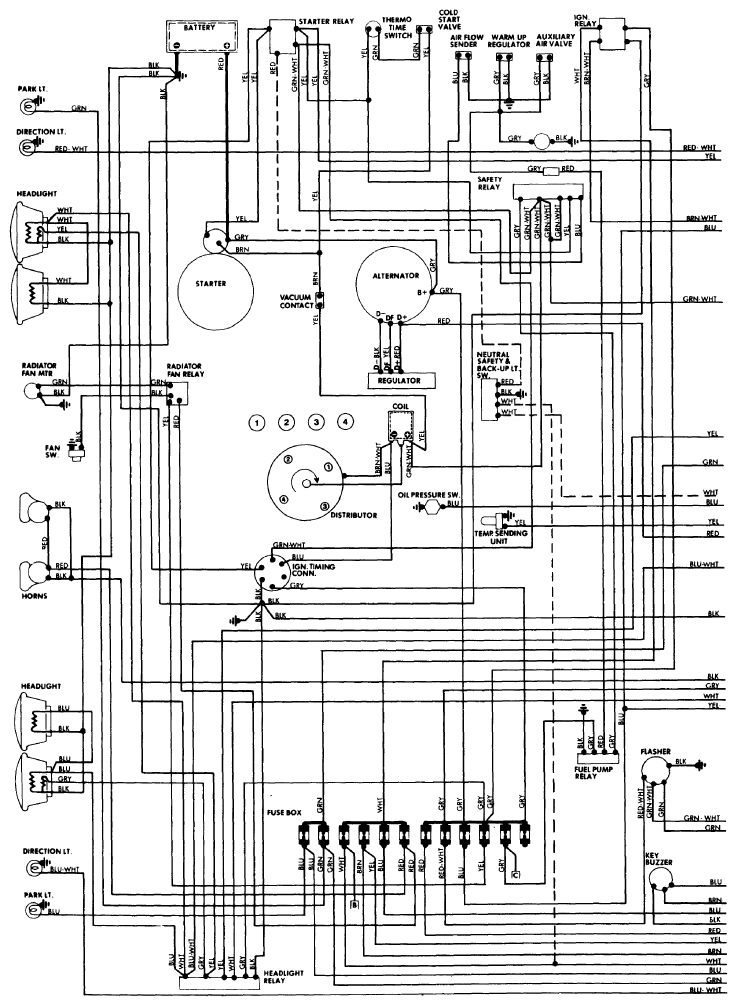

Fig 1: Wiring diagrams - 99 (1 of 2)

G09302995

Courtesy of SAAB-SCANIA OF AMERICA, INC.

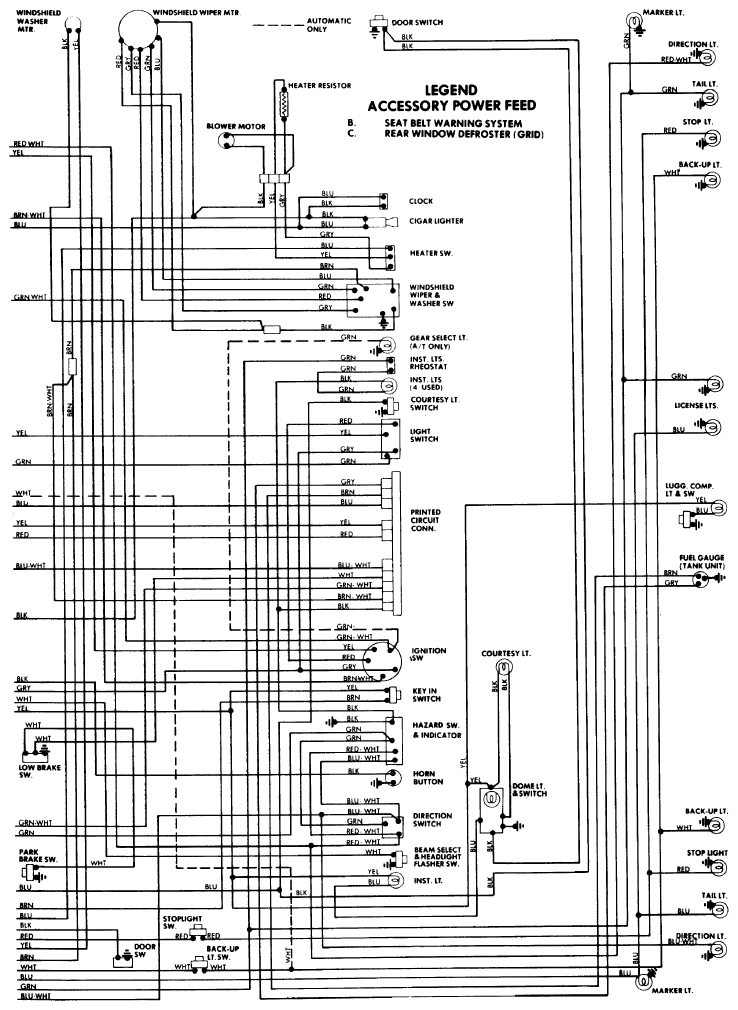

Fig 2: Wiring diagrams - 99 (2 of 2)

G09302996

Courtesy of SAAB-SCANIA OF AMERICA, INC.
