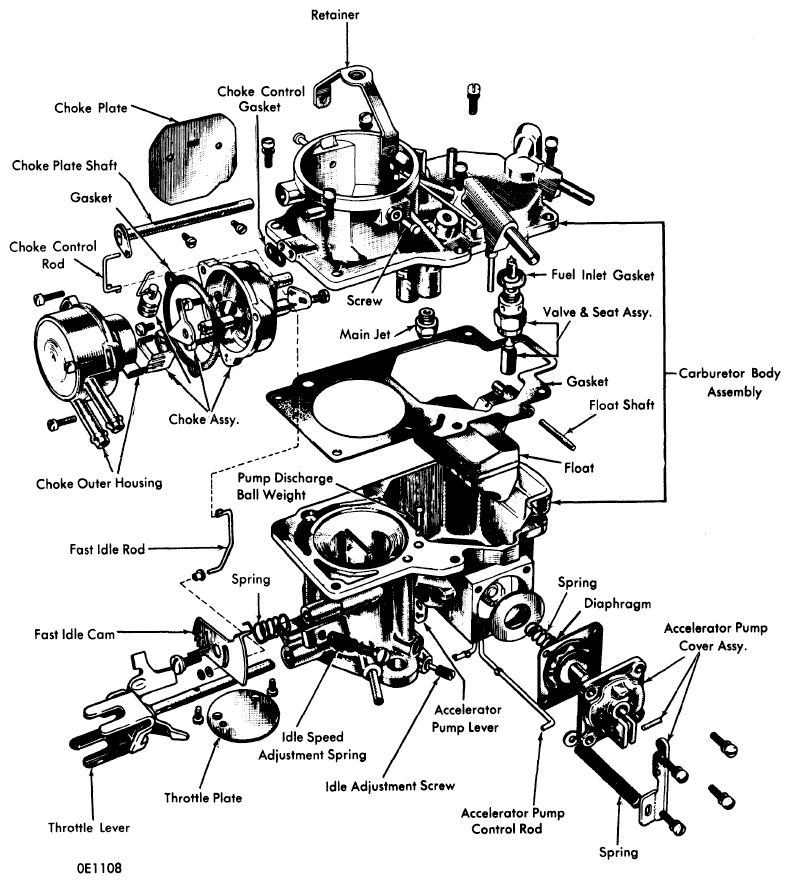

Ford 1250 1-Barrel: Overhaul: Reassembly
To reassemble, reverse disassembly procedures.
Courtesy of NOT AVAILABLE CARBURETOR ADJUSTMENT SPECIFICATIONS
| Ford Car. No. |
Idle Speed (Engine RPM) |
Float Level Setting |
Float Drop Setting |
Accel. Pump Stroke |
Choke Pull-Down Setting |
Unloader Setting |
Auto. Choke Setting |
| Hot |
Fast |
C7BHJ
C7BHK |
580-620 |
900-1100 |
1.12-1.14" |
1.38-1.40" |
.135-.145" |
.16-.18" |
.18-.20" |
Index |
C9BHA
C9BHB |
580-620 |
900-1100 |
1.12-1.14" |
1.38-1.40" |
.135-.145" |
.16-.18" |
.17-.21" |
Index |
701WCA
701WDA |
580-620 |
900-1000 |
1.15-1.17" |
1.41-1.43" |
.080-.090" |
.16-.18" |
.19-.23" |
Index |
| 7011WFA |
830-870 |
1775 |
1.09-1.11" |
1.35-1.37" |
.080-.090" |
.10-.12" |
.19-.23" |
1 Notch Lean |
| C8GH-H |
800-900 |
1900-2100 |
1.08" |
1.34" |
.090-.100" |
.08-10" |
.19-.23" |
Index |
