Rocker Arm Assembly Overhaul: Reassembly

  1. Drive a roll pin in one end of rocker shaft.
  2. Install rocker arms, spring, bracket and spring washers in proper order (see Fig 1).

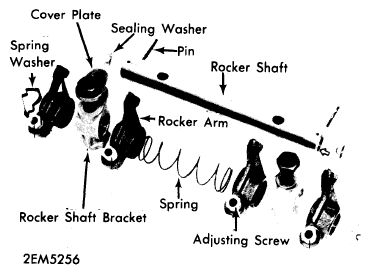

    Fig 1: Rocker Arm Assembly
    G09326176Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install oil holes facing down toward head. Position of oil holes is marked by a grinding mark on end of rocker shaft. Oil hole on right hand head is to rear of engine and oil hole on left hand head is to front of engine.
  4. Alternately tighten rocker arm assembly bolts to specifications.
  5. Readjust tappets.
  6. Before installing valve covers, run engine to make sure rocker arm assemblies are oiling properly.
  7. Reinstall all remaining components.
