Water Pump: Disassembly

Using suitable drift and press, press pump shaft, bearing, and impeller out of pulley and pump housing. Discard all parts except pulley and pump housing.

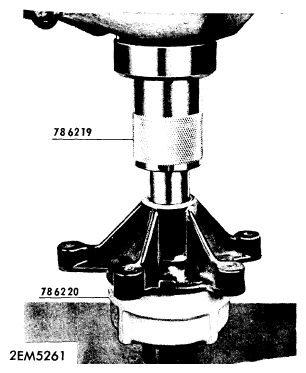

Fig 1: Installing Pump Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.
