All Other Models

All other models are equipped with Ducellier dual pick-up electronic ignition distributors. Trigger plate air gap is adjustable.

DISTRIBUTOR AIR GAP SPECIFICATIONS

Application In. (mm)
All Models Except Fuego Turbo .012-.024 (.3-.6)
Fig 1: Le Car Firing Order & Distributor Rotation
G46435

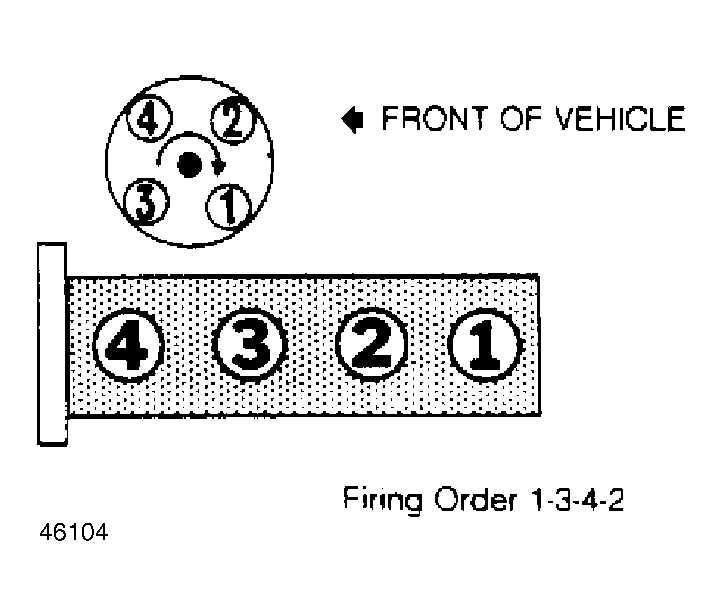

Fig 2: Fuego/Turbo/18i Firing Order & Distributor Rotation
G46104
