All Other Models

Check or adjust ignition timing with vacuum line disconnected and plugged and engine running at idle speed. To adjust, turn distributor until specified mark on flywheel is aligned with specified graduation mark on clutch housing. Reconnect distributor vacuum hose.

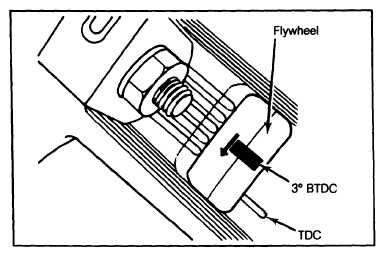

Fig 1: Le Car Timing Mark Location

Courtesy of AMERICAN MOTORS/RENAULT CORP.

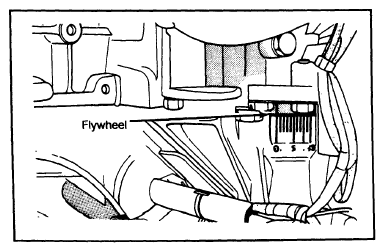

Fig 2: Fuego & 18i Timing Marks (Man. Trans.)

Courtesy of AMERICAN MOTORS/RENAULT CORP.

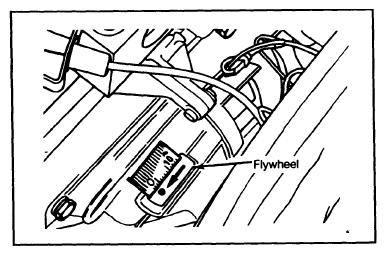

Fig 3: Fuego & 18i Timing Marks (Auto. Trans.)

Courtesy of AMERICAN MOTORS/RENAULT CORP.
