Tune-Up - 4 CYL: Distributor

All models are equipped with dual pick-up electronic ignition distributors. Trigger plate gap is adjustable and should be set to 0.012 - 0.024" (0.3 - 0.6 mm).

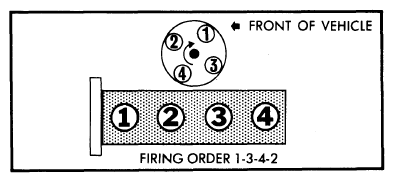

Fig 1: Le Car Firing Order and Distributor Rotation

Courtesy of AMERICAN MOTORS/RENAULT CORP.

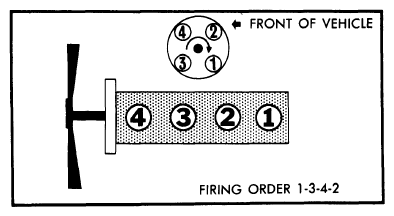

Fig 2: 18i Firing Order and Distributor Rotation

Courtesy of AMERICAN MOTORS/RENAULT CORP.
