Electrical Circuit Test

  1. Connect a 12-volt test light between the coil positive terminal and ground. Turn ignition switch "ON". Test light should light. If not, check feed wire to coil. See Fig 1.

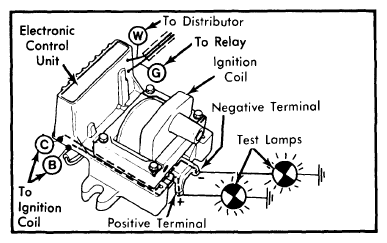

    Fig 1: Test Lamp Hookup for Checking Ignition Coil Voltage
    G09344908Courtesy of NOT AVAILABLE
  2. Connect test light between coil negative terminal and ground. Turn ignition switch "ON". Test light should again light. If not, check if coil primary circuit is broken or if electronic control unit's power transistor is shorted.
