Renault
>>
1977
>>
LeCar GTL
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Wiring Diagram
Wiring Diagrams: Wiring Diagram

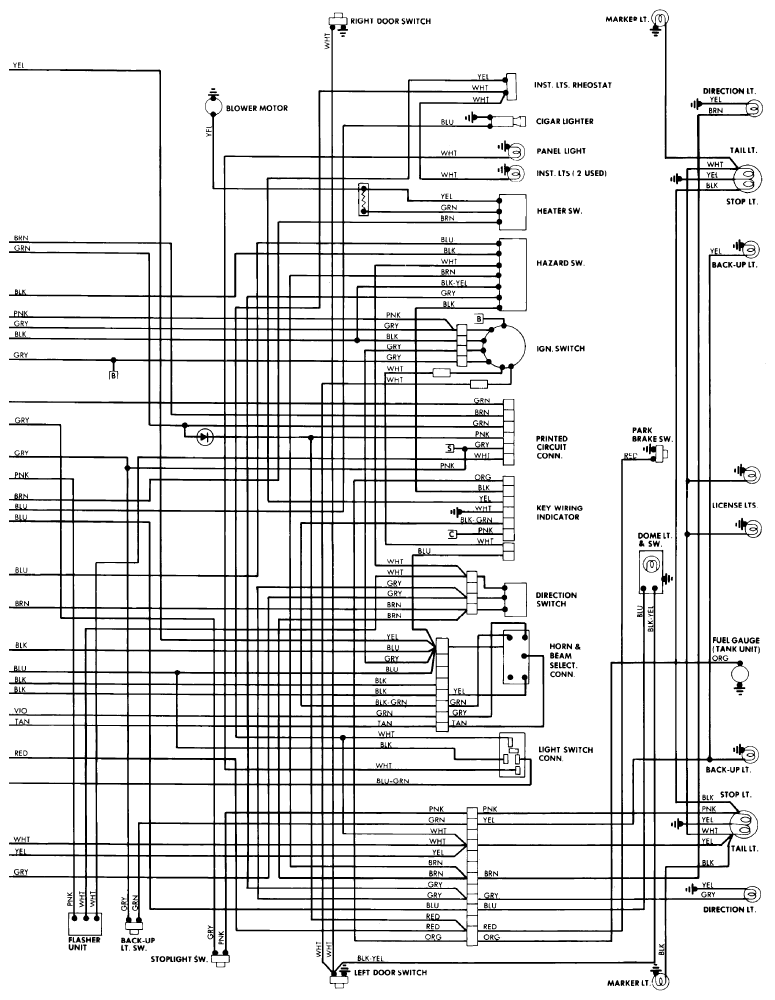

Fig 1: Wiring Diagram - R-5 (1 of 2)
Courtesy of AMERICAN MOTORS/RENAULT CORP.

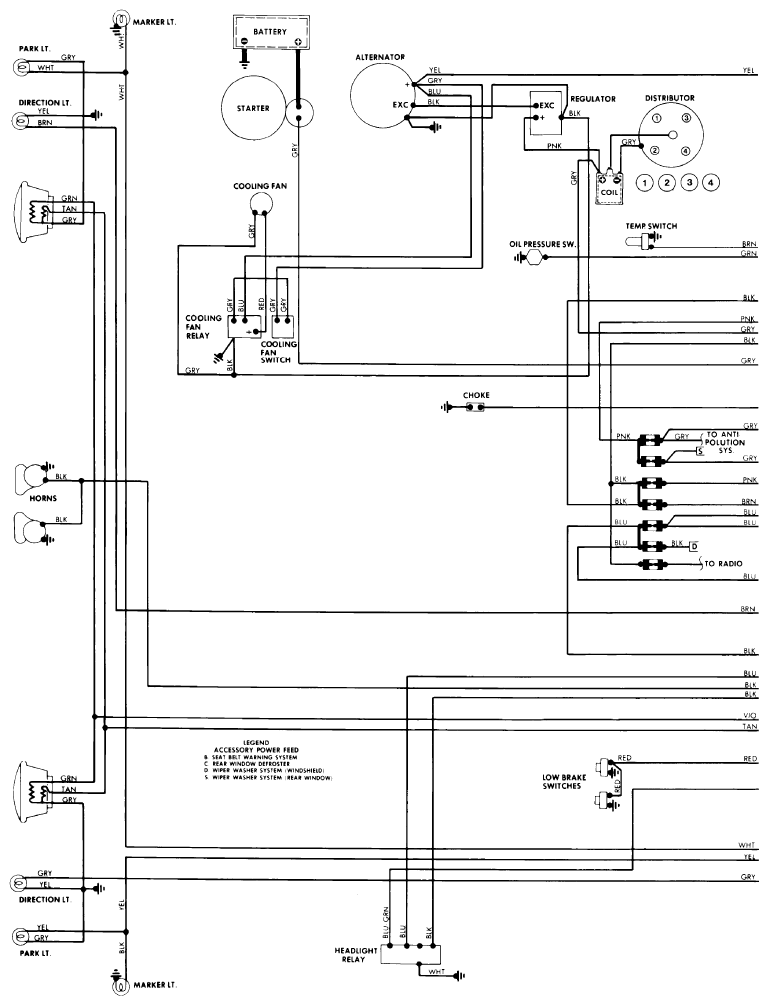

Fig 2: Wiring Diagram - R-5 (2 of 2)
Courtesy of AMERICAN MOTORS/RENAULT CORP.
Courtesy of AMERICAN MOTORS/RENAULT CORP.
Courtesy of AMERICAN MOTORS/RENAULT CORP.
