SOLEX 32-32 SEIEMA 2-Barrel: Description

The Solex 32-32 SEIEMA carburetor is of 2-barrel, downdraft design. Both barrels are equipped with butterfly type choke valve and a diaphragm type accelerator pump feeds only the primary barrel of the carburetor. The carburetor is equipped with throttle screws on both the primary and secondary barrels. Both of these screws are set at the factory.

For exhaust emission purposes, carburetor is fitted with a "Fast Idling System", which reduces the production of carbon monoxide and unburned hydrocarbons in the exhaust gas.

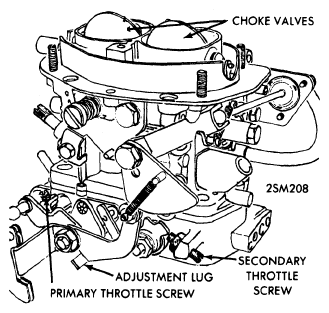

Fig 1: Throttle Screws & Throttle Linkage

Courtesy of AMERICAN MOTORS/RENAULT CORP.
