All Other Models
- Disconnect and remove battery and bracket. Remove air filter and starter. Disconnect clutch cable and remove bracket. Remove camshaft and water pump pulley. Slide alternator inward as far as possible.
- Install retaining tool (T. Av. 509) between shock absorber lower mounting and lower suspension arm hinge pins. Suitably support front of vehicle. Drain transmission fluid.

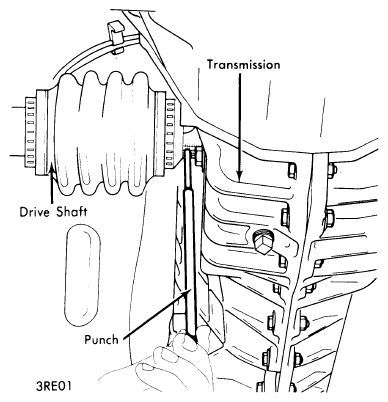

- Using a suitable drift (B. Vi. 31 B), punch out drive shaft roll pins and disengage from transmission drive flanges. Using a suitable extractor (T. Av. 476) detach upper ball joint and steering arm ball joint from each front wheel.
- Disconnect speedometer cable, gear shift lever, and back-up light switch. Remove tubular crossmember, exhaust pipe (if necessary), and transmission crossmember. Using a suitable jack, support rear of transmission.NOTE: It may be necessary to raise rear of transmission to remove crossmember.
- Tilt engine and transmission assembly. Remove clutch shield and bolts securing transmission to engine, and remove transmission. Mark pressure plate and flywheel for reassembly reference, and remove clutch assembly.
