Preparing Connection Areas Of The Body For Installing Spring Strut Mount

1. Align the sealing surface and connections of the body.
2. De-burr connection points and prepare them for welding.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
   • Do not begin bonding work until all materials and tools necessary for later repair work are available  .
3. Prepare marked areas for welding and bonding.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

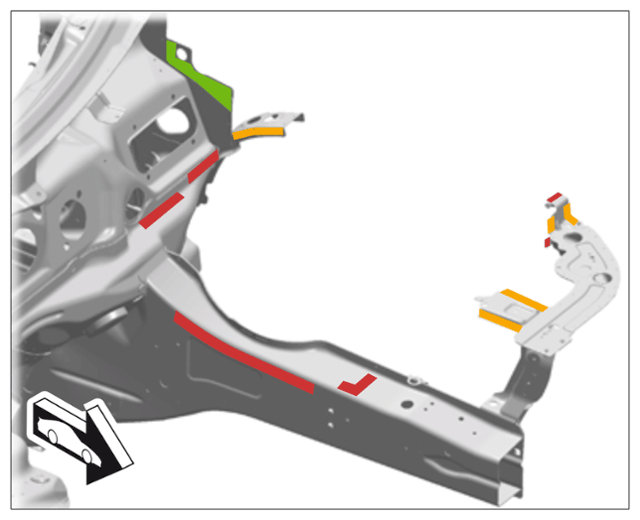

Connection areas of body

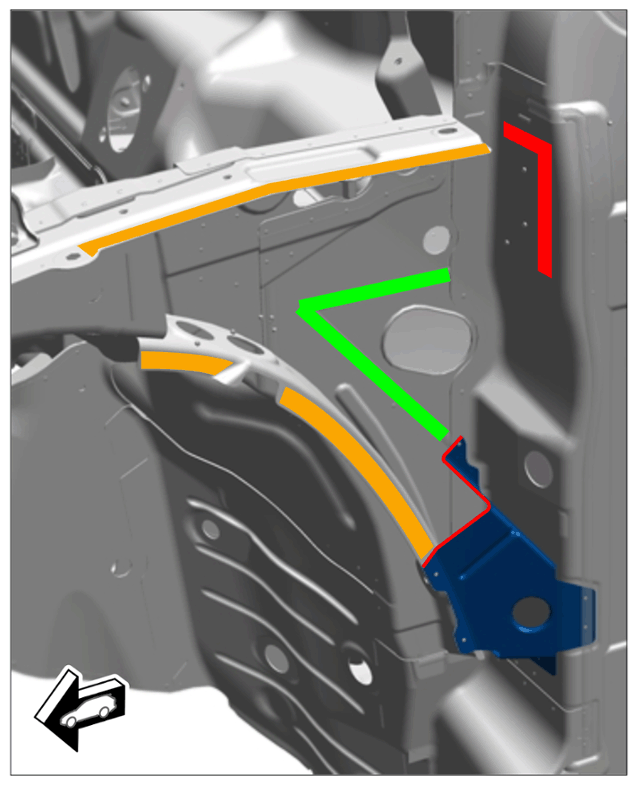

Connection areas of body
