Repairing Spring Strut Mount Thread

Information

• Remove wire thread inserts that are installed as standard before drilling out.

Information

The cut-out diagrams of the thread repairs are examples and are designed to show the installation dimensions of the threaded insert. They do not always show the exact component on which the threaded insert is installed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

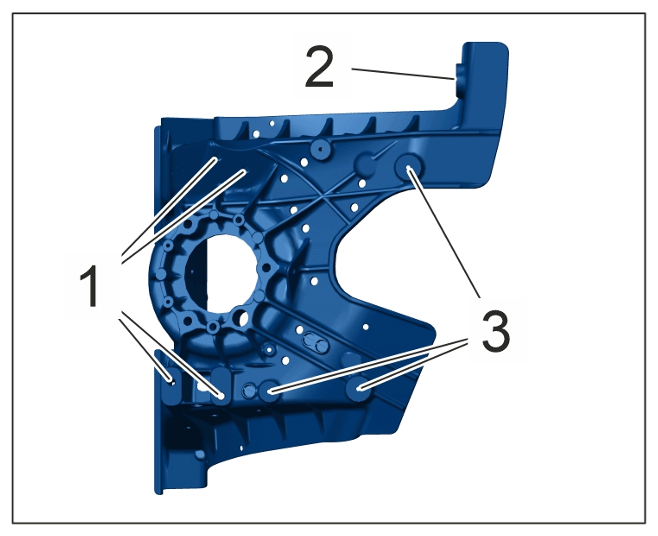

Overview of standard spring strut mount thread

1. Threaded bush, M8:

   Repair thread -1-  .

   > 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR

   Use repair kit > 9843/3 - Thread repair set  .

2. Threaded bush, M8:

   Repair thread -2-  .

   > 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR

   Use repair kit > 9843/3 - Thread repair set  .

3. Threaded bush, M6:

   Repair thread -3-  .

   > 5X00IN34 THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR

   Use repair kit > VAS 6914 - Thread Repair Kit M6 x 1  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

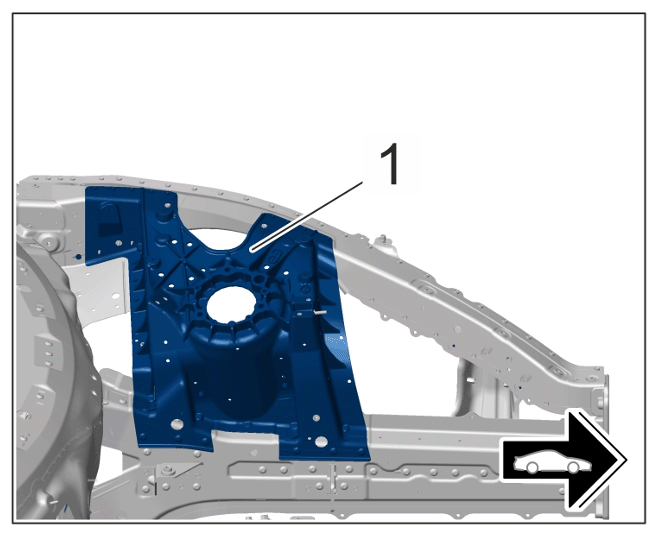

Spring strut mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thread repairs on spring strut mount (M8)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thread repairs on spring strut mount (M8)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thread repairs on spring strut mount (M6)
