Removing Multi-Function Control Unit

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Disengage multi-function control unit -1-  (-arrow a-  ) and pull it to the rear and out of the holder -2-  .

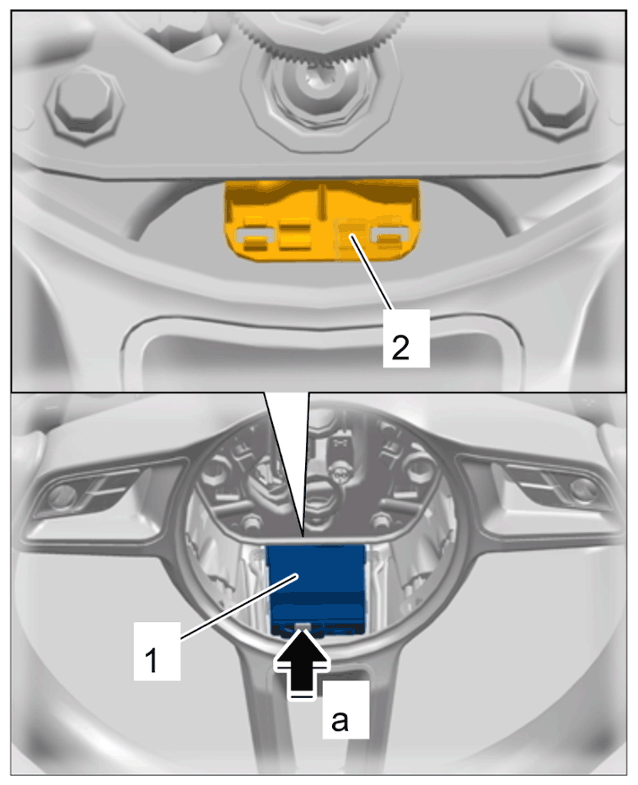

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Multi-function control unit

2. Release electric plug connections -1-  (-arrows a-  ) and disconnect them from the multi-function control unit -2-  .

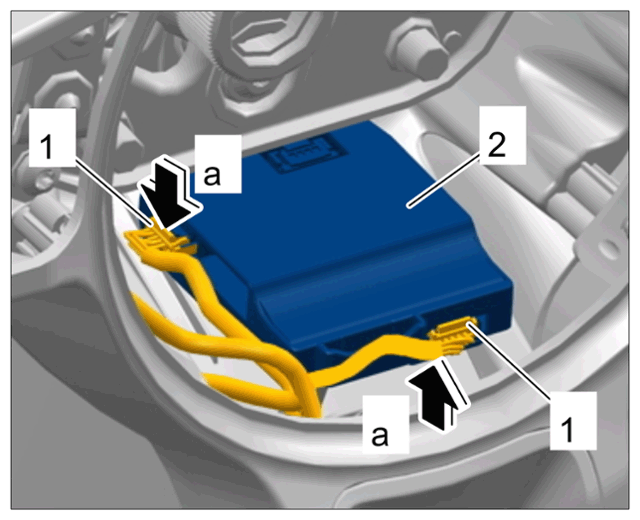

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections
