Repairing Antenna Cable In The Central Computer (PCM) Control Unit Area

  1. Detach antenna cable in central computer (PCM) area -1-  .

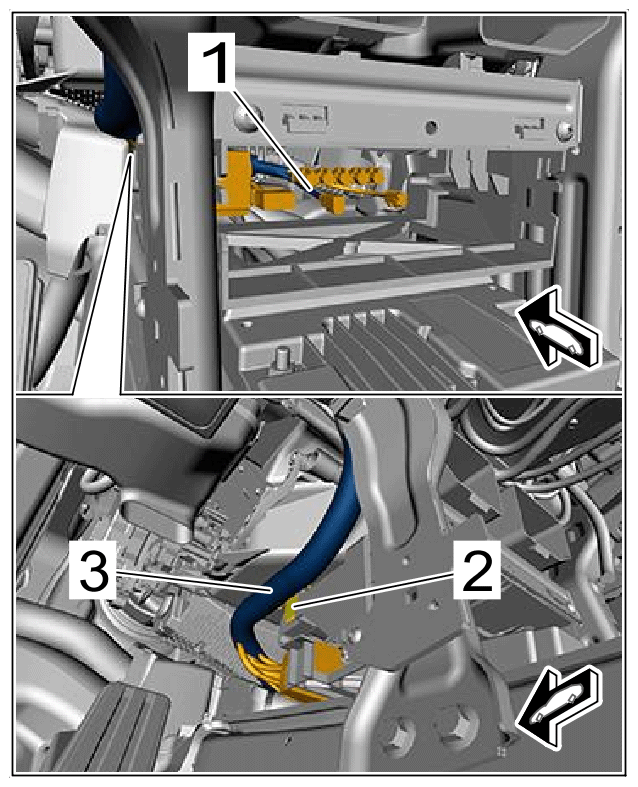

    G15566378Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna cable in the central computer (PCM) area

    1. 1.1  Unclip clip -2-  with a plastic spatula and put electrical wire harness -3-  in the footwell to one side.
    2. 1.2  Expose the damaged area of antenna cable -1-  in electrical wire harness -3-  .
  2. Repair antenna cable.

    > 912841 REPAIRING ANTENNA CABLE

  3. Install in reverse order.
