Removing Central Control Unit For Assistance Systems
NOTE:
NOTIFICATION
Voltage peaks
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- The electrical pins or plug contacts must not be touched.
- Remove central control unit for assistance systems -1-
.

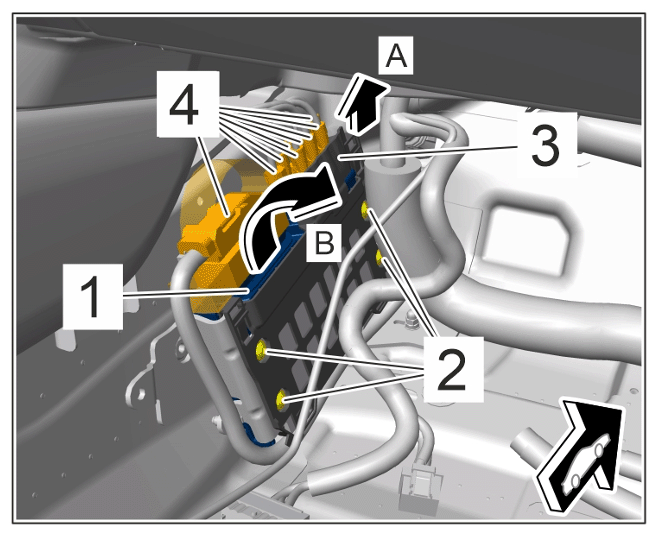

Central control unit for assistance systems
- 1.1 Guide out trim panel for central control unit for assistance systems -3-arrow A- .
- 1.2 Release and unplug electric plug connections -4- .
- 1.3 Unscrew and remove screws -2- .
- 1.4 Guide out central control unit for assistance systems -1-arrow B- .
