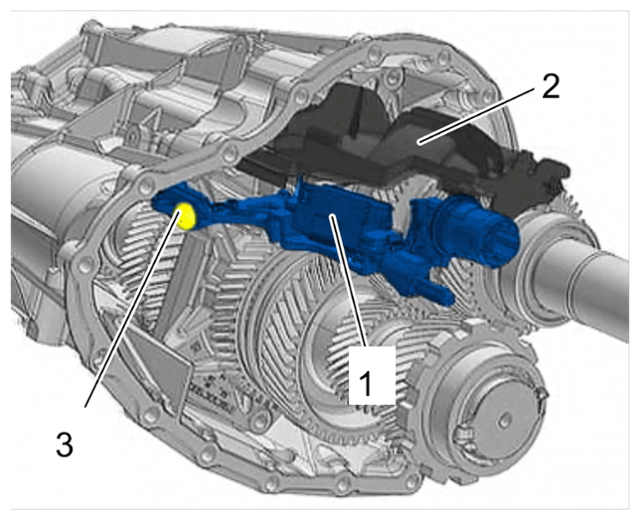

Installing Sensor Module
- Install sensor module -1-
and oil collection pan -2-
.
sensor module
- 1.1 Position sensor module -1- .
- 1.2
Fit and tighten screw 2
.
> Tightening - torque 8 Nm (6 ftlb.)
- 1.3 Position oil collection pan -2- and engage it on the sensor module -1- .
- Prepare cable plug for sensor module -1-
.
Cable plug for sensor module

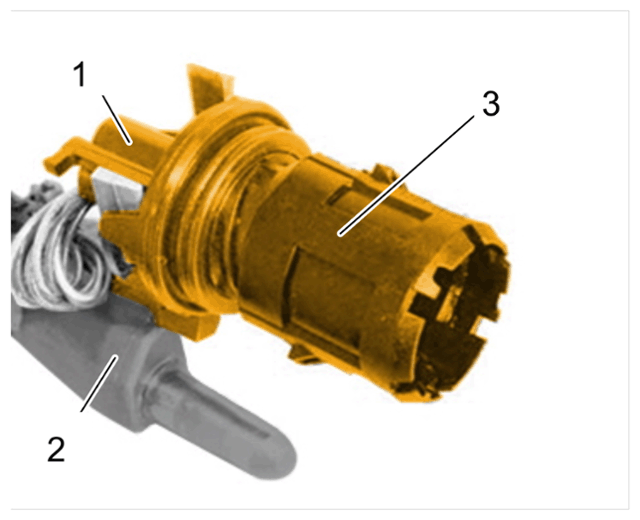

- 2.1 Lock cable plug for sensor module on the sensor module holder -2- .
- 2.2 Push connector housing -3- onto cable plug for sensor module -1- and engage it.
- Position transmission housing on > VAS 6095A - engine and gearbox bracket vertically so that the clutch side is facing downwards,
- Shift selector lever as far as it will go in direction of travel -Arrow-
.
Selector lever

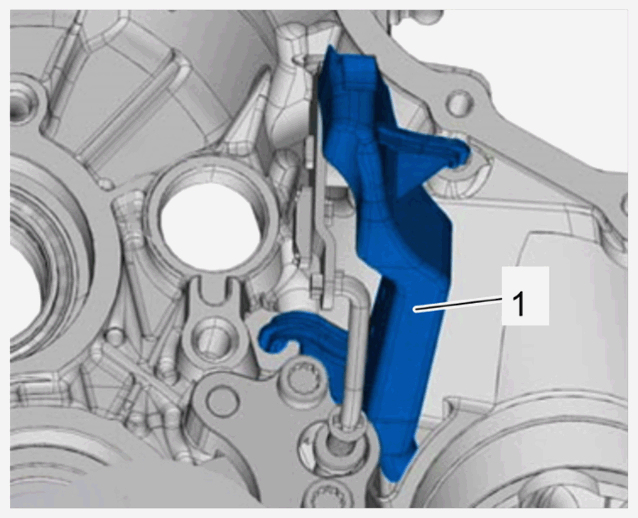

- Check that transmission housing magnet is seated correctly.
Transmission housing magnet

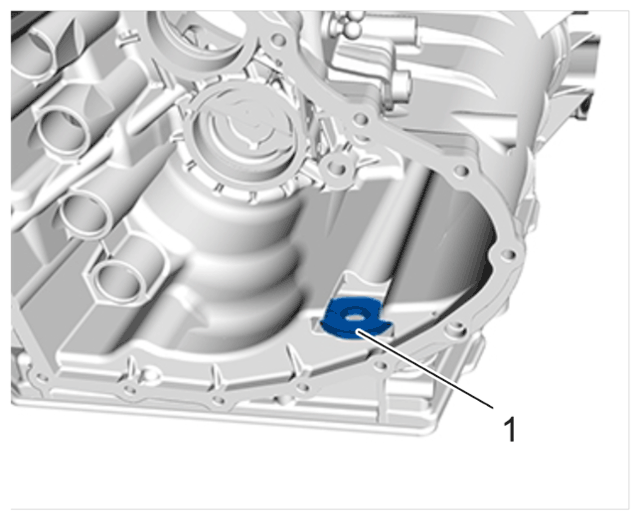

- Check that oil guide for front-wheel drive -1-
is fitted correctly in the transmission housing.
Oil guide for front-wheel drive
Information
- Sealing faces must be free of oil and grease.

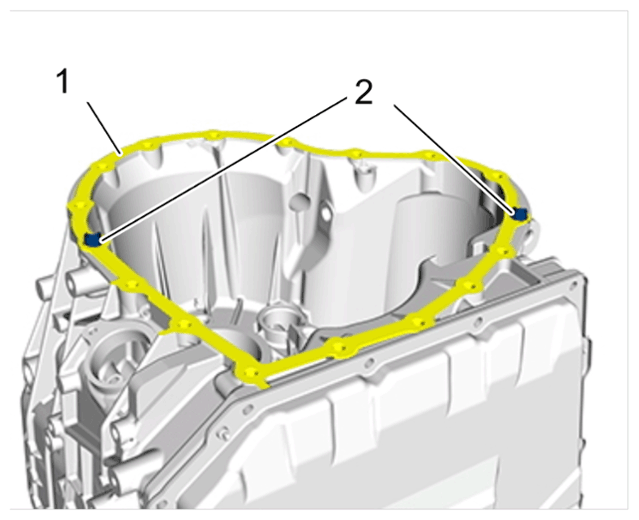

- Apply sealant on transmission housing flange and check that dowel sleeves -2-
are seated correctly.
Transmission housing flange

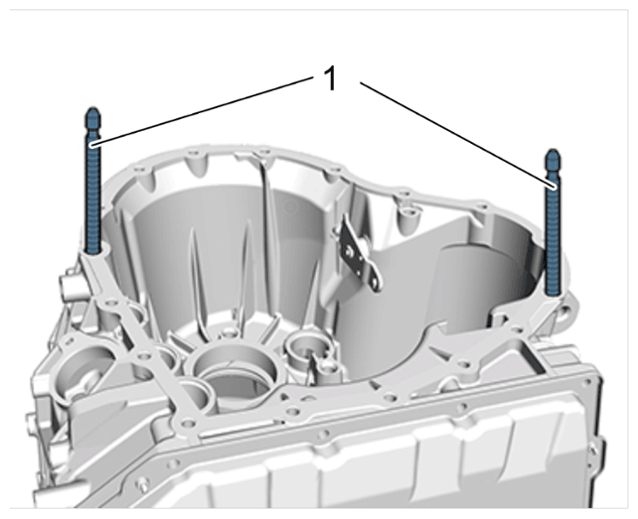

- > T10273 - Guide pins. M8 -1-
must be screwed into position of the dowel sleeves.
T10273 - Guide pins, M8
- Position double clutch transmission on > VAS 6095A - engine and gearbox bracket vertically so that the clutch side is facing downwards.
Information
- The hooks and staking pins of the lifting tackle must be secured with cotter pins.
- The centre transmission housing must be lifted off carefully and in a vertical position in order to prevent the centre transmission housing from tilting.

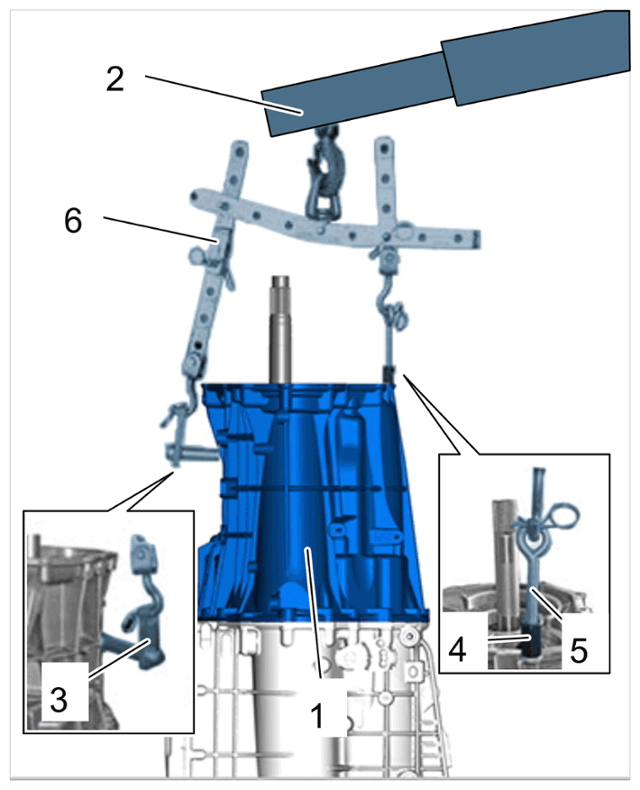

- Suspend centre transmission housing -1-
on >
VAS 6100 -workshop crane -2-
Transmission housing, centre
- 10.1 > T10014 - Retainer -3- must be secured to the centre transmission housing -1- .
- 10.2 Secure VW771740 -4- - from tool set > VW771 - Multi-purpose tool on the centre transmission housing -1- .
- 10.3 > 3368 - Eve-head bolt-5- must be secured to VW771740
- 10.4 > T10014-Retainer -3- and > 3368 - eve-head bolt-5- must now be engaged in the > 2024A - lifting tackle.
- 10.5
> 2024A - Lifting tackle-6- must be attached to the >
VAS 6100-werkshop crane -2-
.
Information
The cable plug for the sensor module must not be tilted when inserting it into the bore on the transmission housing.
- Install centre transmission housing -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws on centre transmission housing
- 11.1 Position centre transmission housing -1- with > VAS 6100 - workshop crane over the > T10273 - guide pins, M8 and lower it into the transmission housing
- 11.2 > T10273 - Guide pins. M8 must new be unscrewed.
- 11.3 Fit new

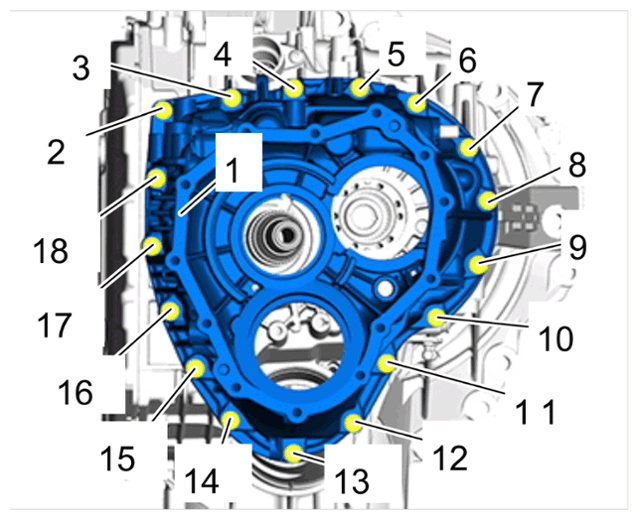

screws -2 to 18- and tighten crosswise.
> Initial - tightening 8 Nm (6 ftlb.)
> Final tightening + 120°
- > 2024A - Lifting tackle and add-en parts must be removed from the centre transmission housing.
- Secure connector housing for sensor module -1-
.
Connector housing

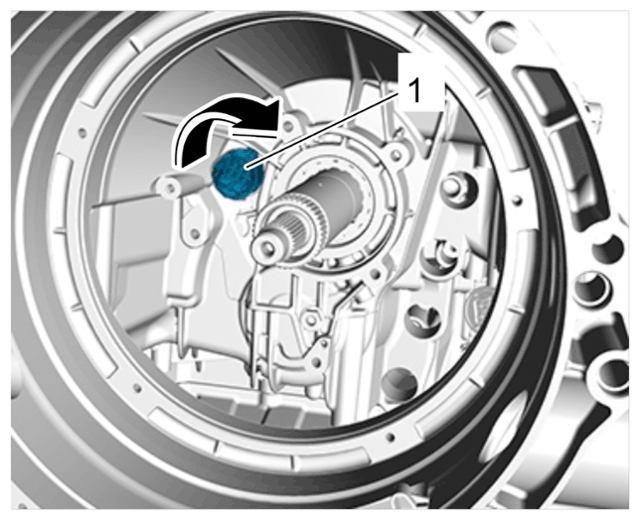

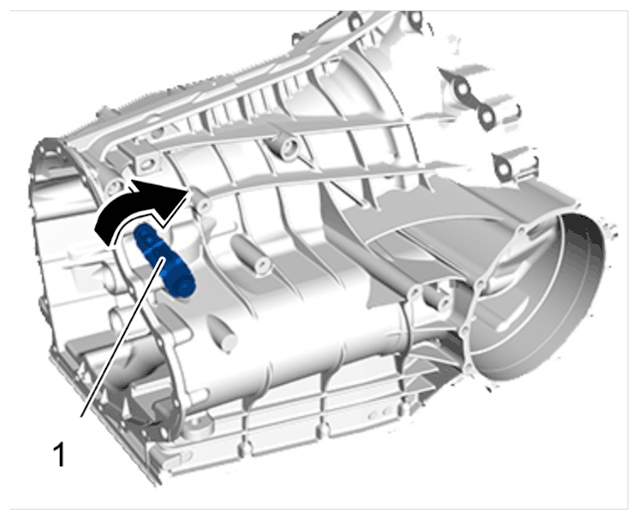

- 13.1 Turn the connector housing for sensor module as far as it will go to the right using > T40228 - bit -Arrow- so it engages.
- Install new sealing ring for front output shaft.

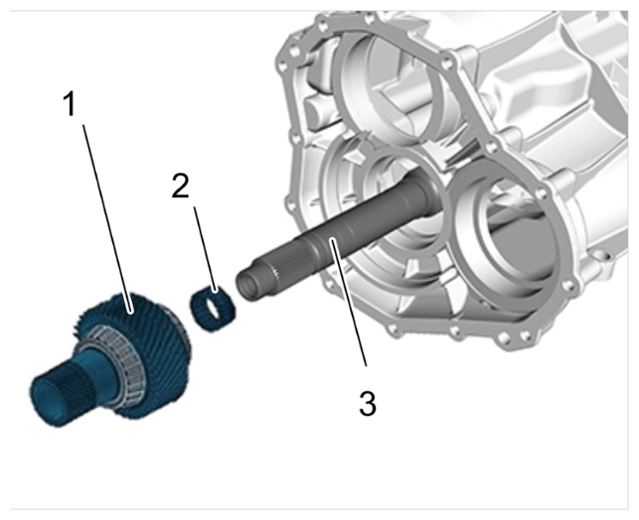

- Fit spur gear -1-
and needle-roller bearing 2
. on the output shaft -3-
.
Spur gear and needle-roller bearing
- Install side shaft
Screw for side shaft
- 16.1 Insert side shaft -1- . as far as it will go onto the pinion and into the transmission cover.
- 16.2 Fit new
screw for side shafts

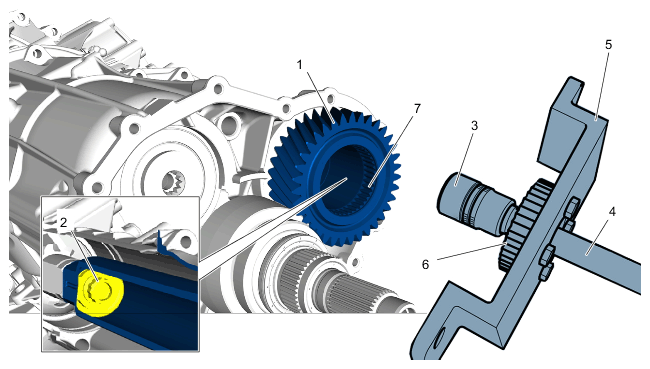

- 16.2.1 Push on bi-hexagonal socket insert (a/f 21) with extension -2- and screw in side shaft screw -2- .
- 16.2.2 Insert ring gear of > T40217 - counterhold tool-6- into ring gear of side shaft -7- ,
- 16.2.3 > T40217 - Counterhold tggl-5- must be secured to the centre transmission housing.
- 16.2.4
Tighten screw for side shaft 2
.
> Initial - tightening 100 Nm (74 ftlb.)
> Final tightening + 120°
- 16.3 > T40217 - Counterhold tool-5- must now be removed

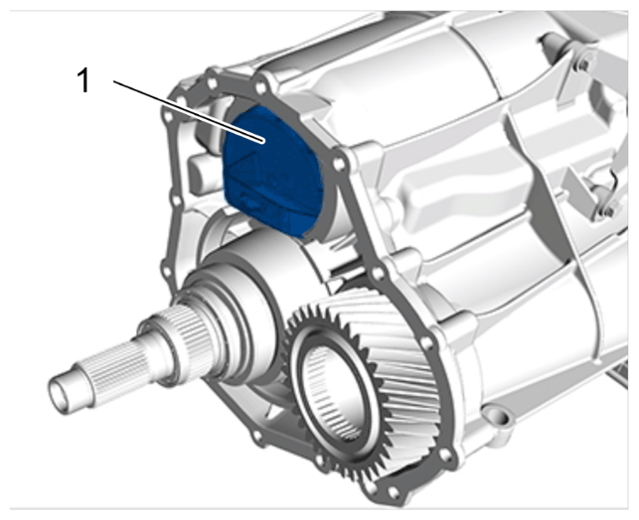

- Install oil guide for drive shaft 1
.
Oil guide for drive shaft
Information
- Sealing faces must be free of oil and grease.

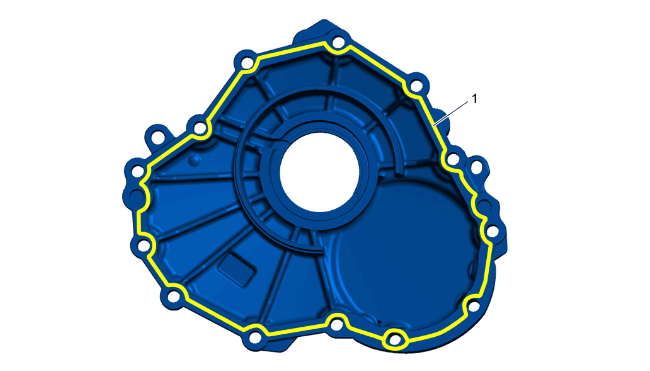

- Apply sealant to the transmission housing cover.

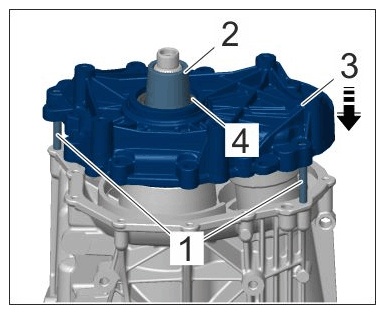

- Install transmission housing cover -3-
.
Transmission housing cover
- 19.1 > T10273 - Guide pins. M8 -1- must be screwed into the threaded bores.
- 19.2 > 9884 - Sleeve -2- must be fitted over the transmission shaft.
- 19.3 Push transmission housing cover -3- straight on.
- 19.4 > T1Q273 - Guide pins. M8 -1- must now be unscrewed.

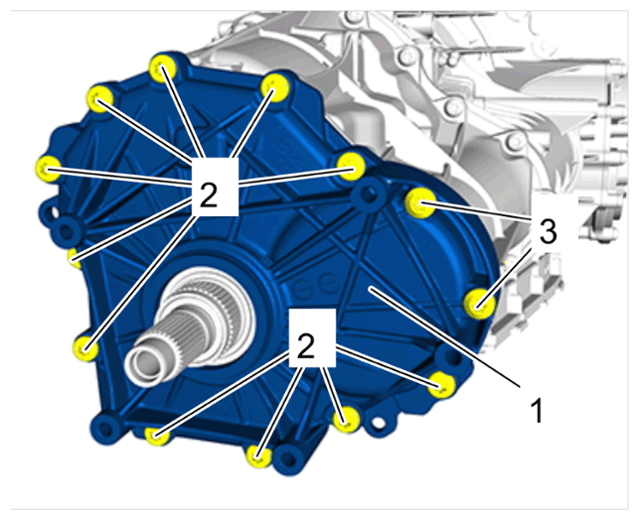

- Secure transmission housing cover -1-
Transmission housing cover
- 20.1
Screw in and tighten new
screws
> Initial - tightening torque 20 Nm (15 ftlb.)
> Final tightening + 90°
- 20.2
Screw in and tighten new
screws -3-
> Initial - tightening torque 15 Nm (11 ftlb.)
> Final tightening + 90°
- 20.1
Screw in and tighten new
screws
- Fit new
sealing ring on transmission housing cover.

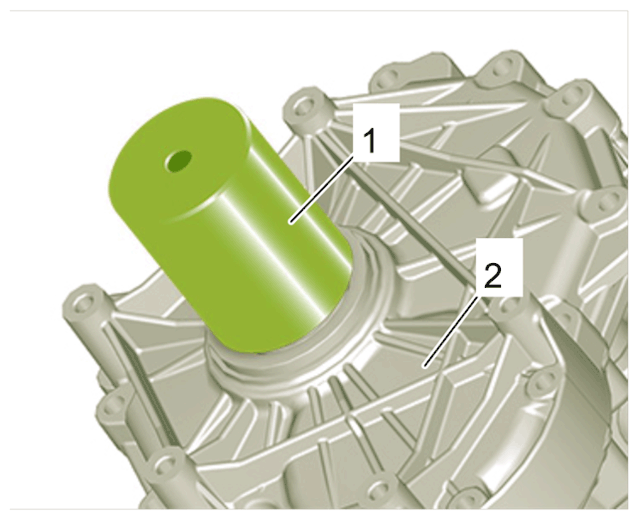

- 21.1 Push on sealing ring on > 9884 - sleeve.
- 21.2 > 9884/1 - Pressure piece -1- must be pushed onto the > 9884 - sleeve and output shaft.
- 21.3 Using > 9884/1 - pressure piece-1-, press sealing ring fully onto the transmission housing cover -2- .
- 21.4 > 9884 - Sleeve must now be removed.
9884/1 - Pressure piece
