WM, 5X00IN24 Setting Self-Tapping Screws: Notes

PARTS DESCRIPTION

Part number	Description	Addition
> 99907391701	Lens-head screw 999.073.917.01 M5x20	M5x20
> 99907354101	Lens-head screw 999.073.541.01 M6x20	M6x20
> PAF00654700	Hexagon-head bolt PAF.006.547.00 M5x20	M5x20
> PAF00709300	Hexagon-head bolt PAF.007.093.00 M5x25	M5x25

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

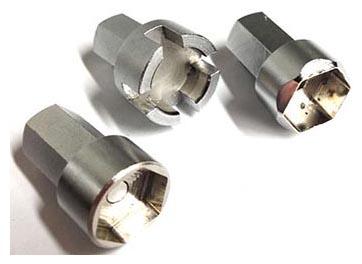

FDS sockets	Vehicle-specific workshop equipment	> VAS 852 007A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1
Threaded joint		Tightening torque	6 (4.5 ftlb.) Nm	+/- 1 (0.5 ftlb.) Nm
Predrilled hole	Dimension X	Diameter	3.5 mm

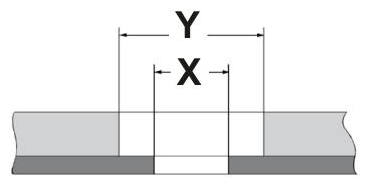

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
Through-bore	Dimension Y	Diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
Threaded joint		Tightening torque	9.5 (7 ftlb.) Nm	+/- 1 (0.5 ftlb.) Nm
Predrilled hole	Dimension X	Diameter	4.7 mm

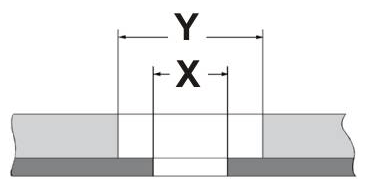

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
Through-bore	Dimension Y	Diameter	8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
Screw	Screw in as far as head contact surface	Torque angle	+ 90 °
Pilot bore	Dimension X	Diameter	3.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
Through-bore	Dimension Y	Diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
Screw	Screw in as far as head contact surface	Torque angle	+ 90 °
Pilot bore	Dimension X	Diameter	3.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
Through-bore	Dimension Y	Diameter	7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hole geometry
