WM, 5X00IN20 Working With Body Structural Foam: Notes
TOOLS DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

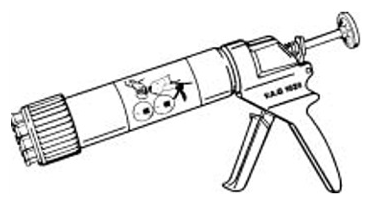

| Hand-cartridge gun | Vehicle-specific workshop equipment | > V.A.G 1628 | |

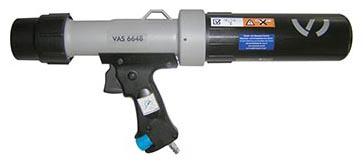

| Pneumatic Gun, 18 bar | General workshop equipment | > VAS 6648 | |

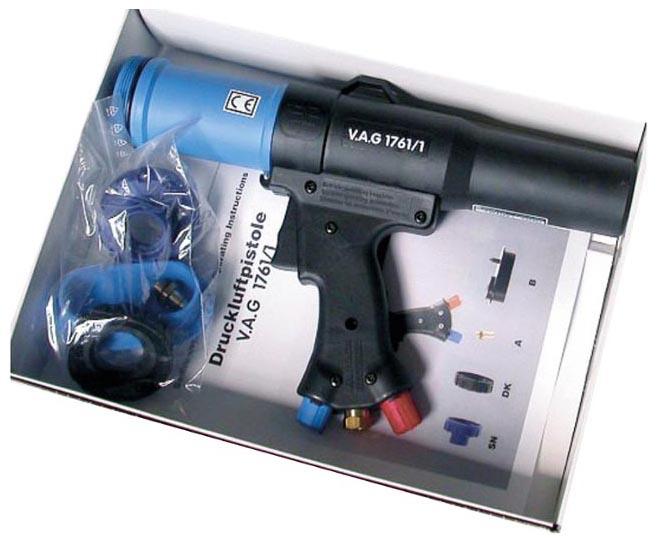

| Pneumatic Cartridge Gun for Seam Sealing | General workshop equipment | > V.A.G 1761/1 |
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Minimum processing temperature | 000.043.305.87 | Minimum temperature | 15 °C | ||
| Maximum processing temperature | 000.043.305.87 | Maximum temperature | 28 °C | ||
| Structural foam bonding | 000.043.305.87 | Processing time at 20 °C | 90 min | ||
| Structural foam bonding | 000.043.305.87 | Processing time at 28 °C | 60 min | ||
| Minimum hardening temperature | 000.043.305.87 | Minimum temperature | 20 °C | ||
| Maximum hardening temperature | 000.043.305.87 | Maximum temperature | 50 °C | ||
| Assembly strength | 000.043.305.87 | Hardening time at 20 °C | 12 h | ||
| Assembly strength | 000.043.305.87 | Hardening time at 50 °C | 8 h | ||
| Endurance strength | 000.043.305.87 | Standing time at 20 °C | 24 h |
